32" Chassis/VESA Mount LCD w/ VGA, DVI, HDMI, PCAP Multi-Touch (10-points in Window 7, 11) (Model: YCHW3200-PCAP)

32" Chassis and VESA Mount 1920x1080, 400nits-LED with VGA+DVI+HDMI Signal Input / PCAP Multi-Touch with USB controller (10-points in Window 7, 11)

32" Chassis and VESA Mount 1920x1080, 400nits-LED with VGA+DVI+HDMI Signal Input / PCAP Multi-Touch with USB controller (10-points in Window 7, 11)

Inquiry/Quote Request
YCHW3200-PCAP
  • Overview
  • Specifications
  • Download

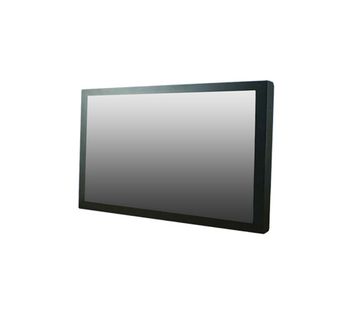

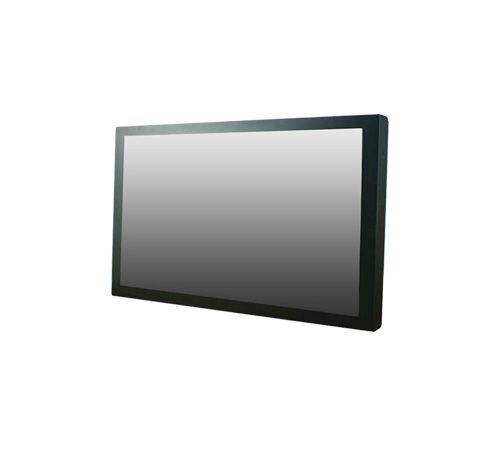

The YCHW3200-PCAP is a professional-grade 32-inch chassis mount LCD monitor designed for industrial, commercial, and interactive display applications. Featuring projected capacitive (PCAP) multi-touch technology, this display ensures highly responsive and precise touch input. Built with a robust chassis enclosure and a wide viewing angle, it is ideal for control systems, kiosks, automation panels, and other embedded solutions where performance and durability are critical.


Features:
  • 31.5" TFT LCD
  • 1920x1080 Resolution
  • PCAP Multi-Touch with USB controller (10-points in Window 7,11)
  • AC 90-264V Power input
  • VESA Mount (M6)(200x200)
ITEMS SPECIFICATION UNIT
Active Screen Size 31.5 inch
Display Area 698.4 (H) x 392.85(V) mm
Outline Dimension 759.1 (H) x 453.4 (V) x 66.8 (D) mm
Driver Element a-Si TFT active matrix
Display Colors 8 bits Colors
Number of Pixels 1,920x1,080 Pixel
Pixel Pitch 0.3637 (H) x 0.3637 (W) mm
Pixel Arrangement RGB vertical stripe
Display Operation Mode Normally Black

Parameter Symbol Values Unit
  Min. Typ. Max
Contrast Ratio CR 2000 4000 --
Surface Luminance (White) Lwh 320 400 -- cd/m2
Luminance Variation White(9P) 70 75
Response Time (G to G) Tn -- 6.5   ms
