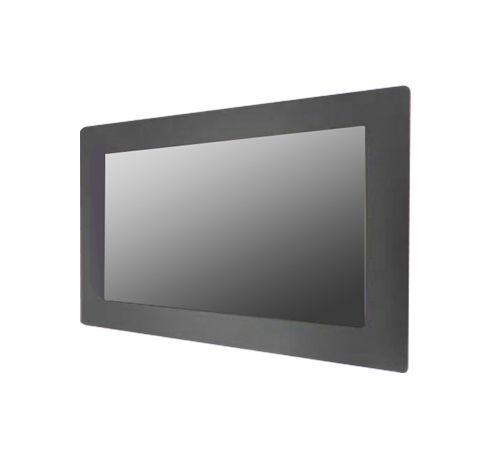

4K Front IP65 32" Panel Mount LCD Monitor w/ VGA x2/DP x2 Input, DC 24V Power, AR Coating Glass (Model: YPMW3200K)
32" Panel Mount LCD Monitor 5mm metal front bezel / Front IP65 / 3840x2160 (4k) / 350nits LED / VGA +DP(x2) +HDMI(x2) signal input / DC 24V Power input with AC Adapter / Rear OSD / Panel Mount with Clamp / 3mm AR Coating Glass
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Meet the YPMW3200K, a 32-inch ultra-high-definition (3840 × 2160) panel-mount LCD engineered for industrial-grade reliability. With an IP65-rated front bezel, this display offers superior dust and water resistance. It features crisp 4K resolution, robust visual clarity, and rugged construction tailored to harsh environments. Designed for seamless integration in industrial control panels, kiosks, and outdoor applications, the YPMW3200K ensures performance that’s as enduring as it is sharp. |
Features: |
|
| Panel Type | 32.0-inch TFT LCD |
| Screen Diagonal | 32.0-inch |
| Active Display Area (mm) | 697.31 (H) x 392.23(V) |
| Pixel Pitch (um) | 0.3637 (H) x 0.3637 (W) |
| Number of Pixels | 3840x2160 (4k) |
| Contrast Ratio | 1000:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 350 cd/m˛ |
| Viewing Angle(Typ.) | 89/89/89/89 (R/L/U/D) |
| Signal Connector | VGA +DP(x2) +HDMI(x2) |
| Power Source | DC 24V Power input with AC Adapter |
| Power Management | VESA DPMS Compliant |
| Temperature Range Operating Storage (Non-Operating) |
0 to +50 °C -20 to +60 °C |
| Plug & Play | VESA DDC 1/2B |
