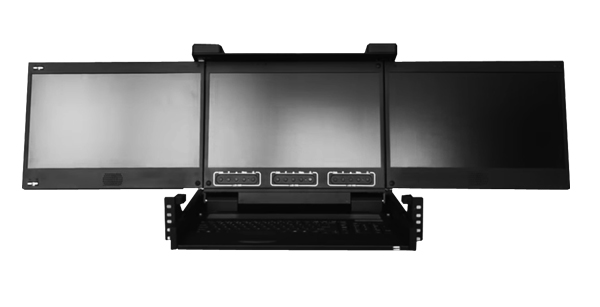

Single Slides 2U 17.3" Triple Rackmount LCD KB Console Drawer, 3x DP & VGA, Korean KB Layout (Model: ASK3D1730-DPV-K)

2U 17.3" 1920x1200 Widescreen Triple LCD Rackmount LCD Keyboard Console Drawer, 3 x DP & VGA Port, 104-key keyboard with touch pad mouse Self-locking and auto release rails for ultra-convenience and built-in speakers, 580mm. 22.8" deep **Korean Keyboard Layout**

2U 17.3" 1920x1200 Widescreen Triple LCD Rackmount LCD Keyboard Console Drawer, 3 x DP & VGA Port, 104-key keyboard with touch pad mouse Self-locking and auto release rails for ultra-convenience and built-in speakers, 580mm. 22.8" deep **Korean Keyboard Layout**

Main Feature

    • 2U 17.3 inch widescreen Triple LCD Console Drawer
    • Triple DP & VGA Port
    • 1920 x 1080 Ultra high resolution
    • Support FHD with 1080p resolution.
    • Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
    • 104-key keyboard with touch pad mouse.
    • USB 2.0 Keyboard & Mouse
    • Self-locking and auto release rails for ultra convenience.
    • Build in 2x 2 watts speakers
    • Korean Keyboard Layout
Inquiry/Quote Request
ASK3D1730-DPV-K
  • Specifications
  • Download
No. of ports 1
KVM Connectors 3 x DP & 3x VGA / 1 x USB for KB & Mouse




LCD		 Size Triple 17.3 inch FULL HD display
Backlight LED
Resolution 1920*1080 ( support resolution up to 1920*1200 )
Max.color 262K
Luminance 300 cd/m2
View Angel (H/V) 140 / 120
Contrast Ratio 650 : 1
Port Selection N/A
USB HUB Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device
Audio 1 x 3.5mm Audio jack
KB/Mouse Emulation USB 2.0
Rack Depth ( rack cabinet front rails to rear rails ) 580mm to 1100mm
Power 100-240V AC 50/60Hz via IEC Type power cord
Environment Operation temp: 0 to 50°C
Storage temp: -20 to 60°C
Humidity: 10% - 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
Physical Dimensions ( W x H x D ) / Net Weights ( KGs ) 443x84x 580mm / 17.0
Packing Dimensions ( W x H x D ) / Gross weights ( KGs ) 735x235x590mm / 22.0

Options:
  • Composite Video input
  • HDMI or DVI input
  • 3G / HD / SD-SDI Broadcast grade input
  • 48V, 24V or 12V DC Power


Accessories
1.8meter IEC Type Power Cord x1
1.8meter DP Cable x3
1.8meter VGA Cable x3
1.8meter USB Cable x1
1.8meter Audio Cable x1
