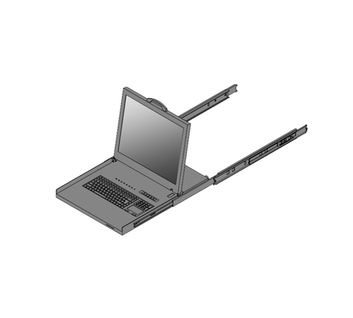

2U Rugged 19" Military Grade Rackmount LCD w/ SCR, AISI-304 Stainless w/ Anti-Corrosion (Model: NKM219HBe-SCR-T)
2U Rugged 19" Military Grade Monitor, KB, Touch-pad, and SCR, EIA-301E, 2U, Depth: 19", Rugged heavy-duty AISI-304 Stainless Steel with Anti-Corrosion, Salt-Fog Treatment
NKM219HBe-SCR-T
- Overview
- Specifications
- Download
| LCD |
Display Size |
19" LCD Grade : Military grade support native operating temperature from -30 to +85 degree C |
| Resolution |
1280 x 1024 |
| Brightness |
1000 cd/m2 |
| Contrast Ratio |
1000 : 1 |
| Display Color |
16.7 M |
| Aspect Ratio |
4 : 3 |
| LED Backlight |
LED backlighting |
| Viewing Angle |
+/- 85 (H) x +/- 80 |
| Color Depth |
16.7 M |
| Mechanical |
EIA Standard |
EIA-301E, 2U |
| Material |
Rugged heavy-duty AISI-304 Stainless steel with anti-corrosion, salt-fog treatment |
| Handle Grip |
Yes |
| Color |
Semi-gloss black |
| Weight |
Less than 25 pounds |
| Dimension |
465 (W) x 88.9(H) x 562 mm(D)(including slide rail depth)
465 (W) x 88.9(H) x 485 mm(depth of chassis) |
| Protect Glass |
Protect Glass |
Strengthen protective glass withstanding ,IK7, IK8, IK9 |
| Glass type |
Strengthen ruggedized glass |
| Touch |
Optional |
| |
IK07 |
Yes, compliant to IK07 |
| KB Touch Pad |
Backlight |
LED backlight |
| No. of Keys |
104 keys |
| Keyboard |
IP-68 water-proof military grade keyboard x USB |
| Keys |
Silicon rubber |
| Function Keys |
24 function keys |
| Touch Pad |
Built in Touch Pad |
| Interface |
USB |
| Transfer Speed |
480 Mb per second |
| Touch Pad |
Voltage |
DC5V |
| O.S. Support |
Windows 10, Linux |
|
| |
| Smart Card Reader |
Read / Write |
ISO-7816-3, T=0, T=1 CPU card |
| Read / Write |
SLE-4418 / 4428 |
| Read / Write |
SLE-4432 / 4442 |
| Read / Write |
SLE-4436/5536 |
| Read / Write |
I2C Memory Card |
| Power Consumption
Environmental |
Total Power Consumption |
Less than 25 Watts |
| Power Input |
AC90~264V, 50/60Hz, Auto Sensing D38999/20TC4PN |
| Operating Temperature |
-20° to + 60°C |
| Power Consumption |
Storage Temperature |
-40° to + 85°C |
| Humidity |
5~95% at 30°C R.H., non-condensing |
| Environmental EMC/EMI |
Salt Fog |
designed to meet MIL-STD-810G, test cost is required if you need test report |
| Vibration |
designed to meet MIL-STD-167-1, test cost is required if you need test report |
| Shock |
designed to meet MIL-STD-901D, test cost is required if you need test report |
| MIL-STD-461E |
designed to meet CE102, CE106, CS101, CS103, CS104, CS105, CS114, CS115, CS116, RE101,RE102, RE103, RS101, RS103
Note : Additional Cost of the above tests is required if you need test report. |
|
| |
| Fungus |
MIL-HDBK-2036 paragraph 5.1.3.8 |
| Transportability |
Altitude |
MIL-STD-810 Low Pressure
Method 500.4 Procedure I (Storage) 15 kft |
Temp
Shock |
MIL-STD-810 Low Pressure
Method 503.4 Procedure I (Steady State) |
|
