2U Rackmount Server Chassis w/ Intel Core i9, 64GB RAM, 2TB SSD, Windows 11 Pro, 500W ATX PSU (Model: Amil-RM2U-i9K)

2U Rackmount Server Chassis (Black) with Intel Core i9 Processor 14900K, 64GB RAM, 2TB SSD, Windows 11 Professional 64-Bit, 500W ATX Power Supply

2U Rackmount Server Chassis (Black) with Intel Core i9 Processor 14900K, 64GB RAM, 2TB SSD, Windows 11 Professional 64-Bit, 500W ATX Power Supply

Inquiry/Quote Request
Amil-RM2U-i9K
  • Overview
  • Specifications
  • Download

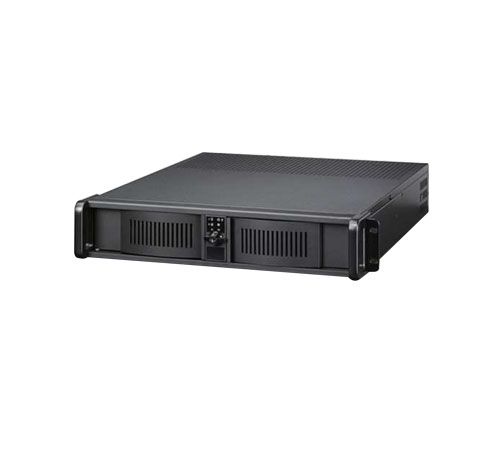

The AMIL RM2U-I9K is a premium 2U rackmount server chassis engineered for high-performance, high-density server deployments. With robust construction, efficient airflow design, and flexible internal configuration, it supports demanding workloads in data centers, enterprise server rooms, or edge computing sites. Whether you’re building a virtualization cluster, storage server, or GPU node, the RM2U-I9K chassis offers reliability, scalability, and ease of maintenance.

Chassis 2U Rackmount server chassis (Black)
Standard EIA RS-310C 19" Rackmount Standard
Construction Heavy Duty Cold Rolled Electroplated Steel
Switch Power ON/OFF, System Reset
Color Black
Chassis Dimension 19"(W) x 20.8"(D) x 3.5"(H)
System Fans 1x 80mm Cooling Fan
Main Board Asus Pro WS W680-ACE, Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen CPUs
Open Slot 2 x PCIe 5.0 x16 slots through add-on riser board
CPU Processor Intel Core i9-14900K Processor 36M Cache, 3.2GHz up to 6.0 GHz, FCLGA1700
Processor GPU Intel UHD Graphics 770
ONBOARD GRAPHICS 1 x DisplayPort, Supports max, 8K@60Hz as specified in DisplayPort 1.4.
1 x HDMI port, Supports 4K@60Hz as specified in HDMI 2.1
1 x VGA port
CPU Fan 2U Low Profile Heatsink and Fan
Memory 64GB DDR5 DIMM Memory (32GB x 2)
M.2 SAMSUNG 990 PRO w/ Heatsink SSD 2TB, PCIe Gen4 M.2 2280 Internal SSD
Rack Rail 20 Inch Rails
LAN 2 x Intel 2.5Gb Ethernet
Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort.,1 x HDMI port, 1 x VGA port, 2 x Intel 2.5Gb Ethernet ports, 5 x Audio jacks
1 x BIOS FlashbackTM button
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Optical Drive 24X SATA Internal DVD+/-RW Drive Optical Drive (Black)
Power Supply 500W ATX Power Supply
Power Cord US Power Cord
OS Windows 11 Pro 64-bit
Warranty 1yr (12 Months) parts and labor
