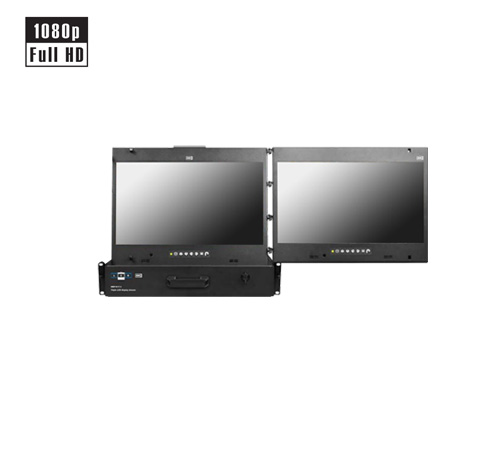

2U FHD 144Hz 17" 22 inch Short Depth Design Dual Rackmount LCD Monitor Display Drawer (Right hinged mount) (Model: NP2DW17M-R)

2U FHD 144Hz 17" (22inch/558.8mm short depth design) dual Rackmount LCD Monitor Display Drawer ( Right hinged mount )

2U FHD 144Hz 17" (22inch/558.8mm short depth design) dual Rackmount LCD Monitor Display Drawer ( Right hinged mount )

Main Feature

    • 2U 22" short depth design
    • Light weight only 42.7 lbs / 19.4 kgs
    • Rugged construction for mobility & durability
    • Built-in solid bearing slide rails
    • Built-in dual stereo speaker ( per display )
    • Five LED backlit display selections ( 4K, WUXGA, FHD 60Hz, FHD 144Hz, 4:3 )
Inquiry/Quote Request
NP2DW17M-R
  • Overview
  • Specifications
  • Download
  • Contact Sales

The NP2D/3D 2U dual or triple display drawer is designed for Command and Control Systems which demand quick deployment for multi-faceted displays.

2U 22" depth platform allows for small size and transit case portability. To ensure chassis ruggedness, mobility and quality, as well as being suitable for harsh environment applications, the drawer is meticulously constructed by a team of experts in our own CNC facilities for such applications.

The key benefit of the NP2D/3D 2U series is the choice of different resolution panels available, including 4K 17", WUXGA 16.2", FHD 17" 60Hz, FHD 17" 144Hz, 19" 4:3 LED backlit displays. Sunlight Readable FHD 17" LCD is also available. 4K 17" displays satisfy the increasing demand for superior graphics and image clarity.


Features:
  • 2U 22" short depth design
  • Light weight only 42.7 lbs / 19.4 kgs
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • Five LED backlit display selections ( 4K, WUXGA, FHD 60Hz, FHD 144Hz, 4:3 )
  • DVI-D + VGA video input for FHD & 4:3 ( per display )
  • HDMI 1.4 + DVI-D + VGA for WUXGA ( per display )
  • Display port 1.2 video input for 4K ( per display )
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • 2-year standard warranty ( upgradable up to 5 years )


Options
  • DC power : 12V / 24V / 48V / 125V
  • 3G / HD / SD-SDI Broadcast-grade input
  • Sunlight readable 17" FHD & 19" 4:3
  • Touchscreen
  • HDMI video input
LCD Panel NPXDW17M
Native resolution 1920 x 1080
Panel size (diagonal) 17.3"
Refresh rate (Hz) 60
Standard Brightness (cd/m˛) 400
High Brightness (cd/m˛) - Option 1000
Contrast ratio (typ.) 600 : 1
Colors 16.7 M, 8-bit
Viewing angle (L/R/U/D) 80/80/60/80
Response time (ms) 5.5
Dot pitch (mm) 0.1989
Display area (mm) 381.888H x 214.812V
Surface treatment Anti-glare,
Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 50,000

Video NPXDW17M
Package DVI-D + VGA
Option HDMI 1.4 / HDCP 1.4

Resistive Touch screen Option NPXDW17M
Technology Projected Capacitive
Touch Point 10 point touch standard
Input Type Finger or Capacitive Stylus
Resolution 4096 x 4096
Touch Point Accuracy ± 2 mm
Response Speed < 5 ms
Activation Force < 5 g
Surface Hardness 6H
Light Transmission > 85%
Haze 3%J.
Durability 50 million touches
Top Layer 1.8 mm Glass
Bottom Layer 0.7 mm Sensor Glass
Thickness 2.7 mm ± 0.1 mm
Connector USB
Compatibility Windows 7 / XP / Linux / Mac

Resistive Touch screen Option NPXDW17M
Technology 5-Wire Resistive
Touch Point Single
Input Type Finger or Stylus
Resolution 2048 x 2048
Response Speed 15 ms
Activation Force < 50 g
Surface Hardness 3H
Light Transmission 80% ± 3%
Haze 8% ± 3%
Durability 10 million touches
Top Layer ITO Film
Bottom Layer ITO Glass
Thickness 2.2 ± 0.2 mm
Connector USB Type A
Compatibility Windows 7 / XP / Linux / Mac

Power NPXDW17M
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption per panel   Screen on Max. 25W
Power saving Max. 3W
Power button off Max. 1W

Physical
Product NPXDW17e-4k
NPXDW17e
NPXDW17M
NPXDW16 		mm 441.6 x 550 x 88
(W x D x H) inch 17.4 x 21.7 x 3.5
  NPXD19 mm 441.6 x 600 x 88
    inch 22.8 x 23.6 x 7.8
Packing (W x D x H) mm 580 x 683 x 197
  inch 22.8 x 26.9 x 7.8
Net NPXDW17e-4k
NPXDW17e
NPXDW17M
NPXDW16 		Triple display 24.1 kg / 53 lb
Weight Dual  display 19.4 kg / 42.7 lb
  NPXD19 Triple display 25.1 kg / 55.2 lb
    Dual  display 20.4 kg / 44.9 lb
Gross NPXDW17e-4k
NPXDW17e
NPXDW17M
NPXDW16 		Triple display 29.3 kg / 64.5 lb
Weight Dual  display 24.2 kg / 53.2 lb
  NPXD19 Triple display 30.3 kg / 66.7 lb
    Dual  display 25.2 kg / 55.4 lb
Chassis color Dark
Chassis materials Steel

Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
