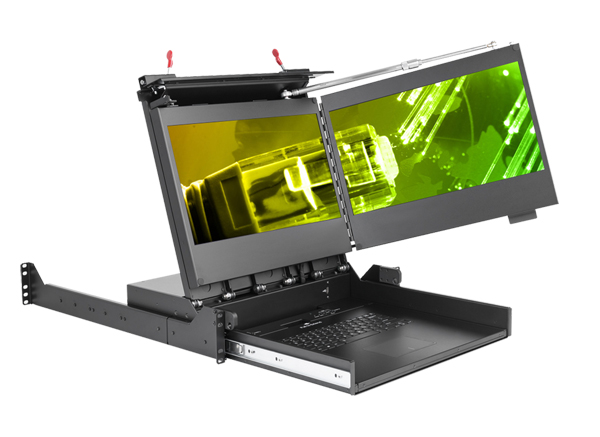

2U Rackmount Dual 2 x 17.3" LCD 1920 x 1080 , Monitor Center and swing to right, integrated with 101-key pull out backlit keyboard and touchpad (Model: BHK2DW117Be-SDI)

2U Rackmount Dual 2 x 17.3" LCD 1920 x 1080 , Monitor Center and swing to right, integrated with 101-key pull out backlit keyboard and touchpad, VGA x 2 , DVI-D x 2 , S-Video x 2, Composite x 2, SDI in/Out x 2, 3.5" (2U rack height) x 17.5" W x 26" D / 38 lbs with 28V DC PSU (Model: BHK2DW117Be-SDI)

2U Rackmount Dual 2 x 17.3" LCD 1920 x 1080 , Monitor Center and swing to right, integrated with 101-key pull out backlit keyboard and touchpad, VGA x 2 , DVI-D x 2 , S-Video x 2, Composite x 2, SDI in/Out x 2, 3.5" (2U rack height) x 17.5" W x 26" D / 38 lbs with 28V DC PSU (Model: BHK2DW117Be-SDI)

Main Feature

  • 2U Rack Mount with dual-screen rugged LCD monitors
  • Independent display controllers
  • Auxiliary pass via USB
  • Robust construction with rugged aluminum construction
  • High resolution
  • Low power, long life, and rugged LED backlights available
  • Integrated keyboard and trackball
  • Available in standard mounting or specialized mounting configurations
  • Meets various military standards
  • Shock and vibration rated slides
Inquiry/Quote Request
BHK2DW117Be-SDI
  • Overview
  • Specifications
  • Download
  • Contact Sales

Introduction

With this type of display, you can have two rugged LCD monitors fold up to fit into a compact 2U space. It features a compact design despite large displays while its rack mount drawer uses a secure all-aluminum monitor mounting and stabilization design for robust applications. It is ideal for military, industrial and special purpose commercial applications.

Display 17.3” 1920 x 1080
Display Deployment Displays rotate up from stowed position, rotate & open via butterfly action and slide to center the two displays on the operator
Display Tilt Displays tilt ~10° from vertical for optimal operator positioning
Signal Inputs VGA x 2 , DVI-D x 2 , S-Video x 2, Composite x 2, SDI in/Out x 2
Display Adjustments Individual brightness, contrast, color temperature adjustments
USB Pass Through Internal USB 2.0 hub with 2x inputs on the front panel and a single USB 2.0 on the rear
Keyboard 101-key pull out backlit keyboard
Pointing Device Resistive touchpad
Input Power 28V DC Optional for 115/230 VAC, 50/60Hz, 100W Max
Internal UPS 5-minute backup, internal battery, switch over indicator
Dimensions/Weight 3.5" (2U rack height) x 17.5" W x 26" D / 38 lbs
 Temperature: MIL-STD-810E (501.4, 502.4) Operating: 0 ~ 50°C Non-Operating: -40 ~ 70°C
 Humidity: MIL-STD-810E (507.2) Relative Humidity: 5% to 95% operating, non-condensing
 Altitude: MIL-STD-810E (500.3)  Operating: 15,000 ft (4571.8 m) Non-Operating: 40,000 ft (12,192 m)
 Vibration: MIL-STD-810E (514.4) Operating: 10 to 500 Hz 1.04 g (RMS)
 Shock: MIL-STD-810E (516.4) Operating: 15 G, 8 ms 1/2 sine
Non-Operating: 40 G, 8 ms 1/2 sine
Drop: 4" stand alone, 39" transit drop in transit case
