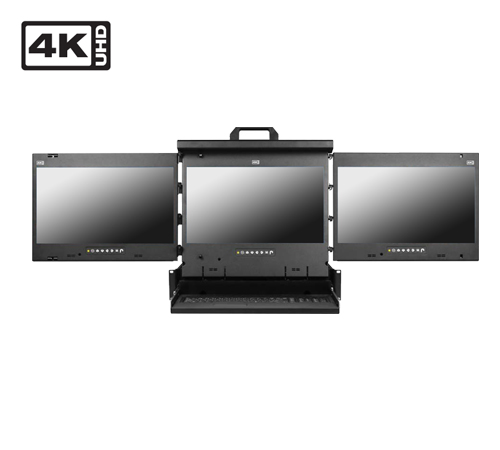

4K 2U 3x17.3" LCD Chassis 22" Short Depth Design Console Drawer w/ VGA, HDMI, DP w/ Touchpad, 24VDC (Model: NVP3DW17e-4K-24VDC)

2U 3x 17.3" LCD chassis 22" Short Depth Design Triple Display Console Drawer Signal input per screen : VGA + HDMI + DP 4K Native Resolution / 104-key keyboard with Touchpad, + 24VDC Terminal Block + and -

2U 3x 17.3" LCD chassis 22" Short Depth Design Triple Display Console Drawer Signal input per screen : VGA + HDMI + DP 4K Native Resolution / 104-key keyboard with Touchpad, + 24VDC Terminal Block + and -

Inquiry/Quote Request
NVP3DW17e-4K-24VDC
  • Overview
  • Specifications
  • Download
The NVP3DW17E-4K-24VDC is a high-performance 2U rackmount LCD console drawer featuring three 17-inch 4K UHD displays integrated with a full-size keyboard and touchpad in a compact slide-out design. Engineered for mission-critical environments, this triple-monitor console maximizes rack space efficiency while providing exceptional visual clarity for monitoring, control, and data-intensive applications. Its rugged construction, 24VDC power support, and industrial-grade design make it an ideal solution for military, transportation, broadcast, control room, and industrial automation systems where reliability and multi-screen operation are essential.


Features:
  • 2U 22" short depth design
  • Light weight
  • Rugged construction for mobility & durability
  • Built-in solid bearing slide rails
  • Built-in dual stereo speaker ( per display )
  • Display port 1.2 video input with attached 6 ft DP cable for 4K ( per display )
  • 104-key keyboard with touchpad ( PS2 / USB )
  • Fits 24" ~ 36" rack via adjustable mounting brackets
  • TAA Compliant
LCD Panel NVP3DW17e-4K-24VDC
Native resolution 3840 x 2160
Panel size (diagonal) 17.3"
Refresh rate (Hz) 60
Standard Brightness (cd/m˛) 400
High Brightness (cd/m˛) - Option /
Contrast ratio (typ.) 1000 : 1
Colors 16.7 M, 8-bit
Viewing angle (L/R/U/D) 89/89/89/89
Response time (ms) Max. 16
Dot pitch (mm) 0.0995
Display area (mm) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000

Video
Package DP 1.2    / HDCP 1.3
Option HDMI 2.0 / HDCP 2.2

Capacitive Touch screen Option

Technology Projected Capacitive
Touch Point 10 point touch standard
Input Type Finger or Capacitive Stylus
Resolution 4096 x 4096
Touch Point Accuracy ± 2 mm
Response Speed < 5 ms
Activation Force < 5 g
Surface Hardness 6H
Light Transmission > 85%
Haze 3%
Durability 50 million touches
Top Layer 1.8 mm Glass
Bottom Layer 0.7 mm Sensor Glass
Thickness 2.7 mm ± 0.1 mm
Connector USB
Compatibility Windows 7 / XP / Linux / Mac

Resistive Touch screen Option

Technology 5-Wire Resistive
Touch Point Single
Input Type Finger or Stylus
Resolution 2048 x 2048
Response Speed 15 ms
Activation Force < 50 g
Surface Hardness 3H
Light Transmission 80% ± 3%
Haze 8% ± 3%
Durability 10 million touches
Top Layer ITO Film
Bottom Layer ITO Glass
Thickness 3.2 ± 0.2 mm
Connector USB Type A
Compatibility Windows 7 / XP / Linux / Mac

Power
Input   + 24VDC Terminal Block + and -
Consumption per panel   Screen on Max. 21W
Power saving Max. 9W
Power button off Max. 2W

Physical
Product (W x D x H) NVP(X)DW17e-4k
 		mm 441.6 x 550 x 88
  inch 17.4 x 21.7 x 3.5
Packing (W x D x H) mm 580 x 683 x 197
  inch 22.8 x 26.9 x 7.8
Net Weight NVP(X)DW17e-4k
 		Triple display 25.7 kg / 56.5 lb
Gross Weight NVP(X)DW17e-4k Triple display 31.1 kg / 68.4 lb
Chassis color Dark
Chassis materials Steel

Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

Environment
Operating temp. 0   to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
