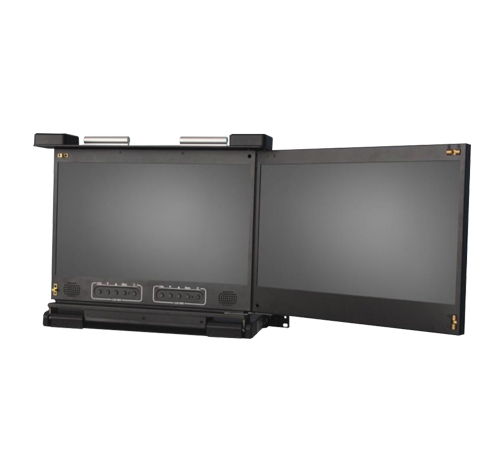

2U Side to Side 20.1" 1600 x 1200 Dual LCD Rackmount LCD Drawer, 2 x DVI & VGA Port Self-locking and auto release rails (Model: ARP2D2010)

2U Side to Side 20.1" 1600 x 1200 Dual LCD Rackmount LCD Drawer, 2 x DVI & VGA Port Self-locking and auto release rails (Model: ARP2D2010)

2U Side to Side 20.1" 1600 x 1200 Dual LCD Rackmount LCD Drawer, 2 x DVI & VGA Port Self-locking and auto release rails (Model: ARP2D2010)

Main Feature

- 2U foldable dual 20.1 inch widescreen LCD display Drawer
- Dual DVI & VGA Port
- 1600 x 1200 WUXGA Ultra high resolution
- Support FHD with 1080p resolution.
- Build in 2x 2 watts speakers
- Independent front osd control buttons to optimized display
- Hidden & Independent retractable tray for ultra convenience

Overview
Specifications
Download
Contact Sales

Features:

2U foldable dual 20.1 inch widescreen LCD display Drawer
Dual DVI & VGA Port
1600 x 1200 WUXGA Ultra high resolution
Support FHD with 1080p resolution.
Build in 2x 2 watts speakers
Independent front osd control buttons to optimized display
Hidden & Independent retractable tray for ultra convenience

Options:

Composite video input
HDMI or Display port input
3G / HD / SD-SDI broadcast grade input
DC 9~36 V power input
AR Hardness glass
Touch screen

LCD Characteristics :
Screen Size	Dual 20.1"
Backlight Type	LED
Resolution	1600*1200
Contrast Ratio	400:1
Brightness ( cd/m2 )	300
View Angles ( H/V )	140/120
Pixel Size ( HxV ) mm	0.1989x0.1989
Max. Color	262K
MTBF ( Hrs. )	10,000

Input Signals:
DVI-D	Dual DVI-D 24Pin Connector (Female)
VGA	Dual D-SUB 15Pin Connector (Female)
Audio	1x 3.5" Jack
Power Input	Standard IEC Inlet
Touch-USB ( option )	Dual USB A Type connector
Touch-RS232 ( option )	Dual D-SUB 9P connector ( Female )

Power Specifications :
AC Power Input	Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Wide Range DC Power Input (option )	Screw Type Terminal Block with internal wide Range DC 9-36V power module

User Controls Interface:

Power ON / OFF via Front Button

Power Mode Status LED indicator

OSD ( On Screen Display ) Buttons

Mechanical and Environment:
Height	2U Foldable
Rack Depth	550 to 950mm ( cabinet front rail to rear rail )
Mounting	Rack Mount with tilt adjustment
Construction	Metal Housing
Operating Temperature	0 - 50 deg. C
Operating Humidity	5% - 95% ( non -condensing )
Anti-Vibration	5 - 500 Hz / 1 Grms PTP
Anti-Shock	15G / Peak ( 11 ms )
Physical Dimension (WxHxD)	482 x 88 x 635 (mm)
Packing Dimension (WxHxD)	W x H x D = TBD
Net Weight / Gross Weight	12.5 / 17 (KGs)
Certification and Approvals	CE / FCC / RoHs
