2U 19" 4:3 Dual Display Drawer (Right hinged mount) VGA + BNC + Audio IN] x2 (Model: NP2D19e-R-BNC)
2U 19" 4:3 Dual Display Drawer (22inch/558.8mm Short Depth Design) (Right hinged mount) 1280x1024 Native Resolution/Signal Input: [VGA + BNC + Audio IN] x2, the DVI-D will be removed ***No Touch***
NP2D19e-R-BNC
- Overview
- Specifications
- Download
| LCD Panel |
19" 4:3 LED backlit |
| Native resolution |
1280 x 1024 |
| Panel size (diagonal) |
19" |
| Brightness (cd/m˛) |
250 |
| Contrast ratio (typ.) |
1000 : 1 |
| Colors |
16.7 M |
| Viewing angle (L/R/U/D) |
85/85/80/80 |
| Response time (ms) |
5 |
| Dot pitch (mm) |
0.294 |
| Display area (mm) |
337.92H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
30,000 |
|
| |
| Video |
| Package |
VGA + BNC + Audio IN |
|
| |
| Power |
| Input Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption per panel |
Screen on |
Max. 22W |
| Power saving |
Max. 4W |
| Power button on |
Max. 1W |
|
| |
| Compliance |
| EMC |
FCC & CE |
| Safety |
CE / LVD & UKCA |
| Environment |
REACH & RoHS3 / WEEE |
|
| |
| Environment |
|
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
10~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
|
| |
| Physical |
| Product (W x D x H) |
mm inch |
441.6 x 600 x 88
22.8 x 23.6 x 7.8 |
| Packing (W x D x H) |
mm inch |
581 x 753 x 216
22.9 x 29.7 x 8.5 |
| Weight |
Net |
Dual display |
20.4 kg / 44.9 lb |
| Gross |
Dual display |
25.2 kg / 55.4 lb |
| Chassis color |
Dark |
| Chassis materials |
Steel |
|

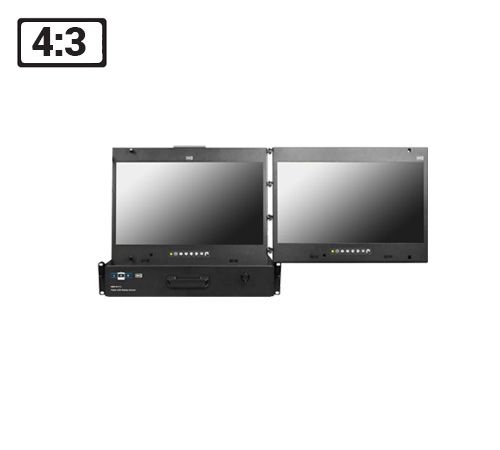

![2U 19" 4:3 Dual Display Drawer (22inch/558.8mm Short Depth Design) (Right hinged mount) 1280x1024 Native Resolution/Signal Input: [VGA + BNC + Audio IN] x2, the DVI-D will be removed ***No Touch***](https://s.turbifycdn.com/aah/wintech/2u-19-inch-dual-display-drawer-np2d19e-r-bnc-5.gif "2U 19\" 4:3 Dual Display Drawer (22inch/558.8mm Short Depth Design) (Right hinged mount) 1280x1024 Native Resolution/Signal Input: [VGA + BNC + Audio IN] x2, the DVI-D will be removed ***No Touch***")
