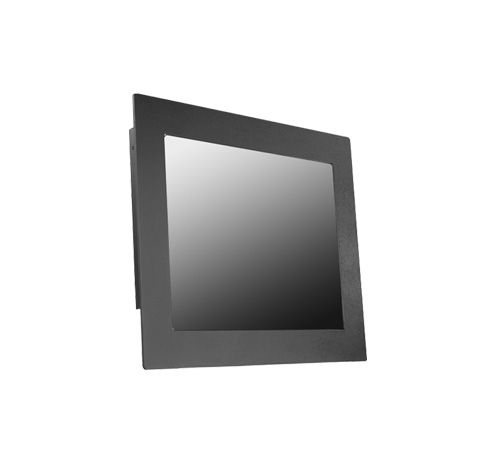

2K 21.3" IP66 Front Panel Mount LCD Monitor, LED-800nits, HDMI, MIL-STD-1275D (9~36V DC isolated) (Model: EMPM2130K)

IP66 Front Panel Mount, 21.3" LCD monitor, 2048x1536, LED-800nits, HDMI input, AC-IN w/Built-in PWR MIL-STD-810G (Vibration and shock) Power: MIL-STD-1275D (9~36V DC isolated)

IP66 Front Panel Mount, 21.3" LCD monitor, 2048x1536, LED-800nits, HDMI input, AC-IN w/Built-in PWR MIL-STD-810G (Vibration and shock) Power: MIL-STD-1275D (9~36V DC isolated)

Inquiry/Quote Request
EMPM2130K
  • Overview
  • Specifications
  • Download
Introducing the EMPM2130K, a 21-inch 2K military-grade rugged panel-mount display engineered for the most demanding environments. Built with a fully sealed IP66 design, this display delivers superb durability against dust, water, vibration, and shock while maintaining crystal-clear resolution. Ideal for defense, avionics, industrial control, and mission-critical systems, the EMPM2130K combines high reliability with high performance-ensuring that your system remains visible and responsive even under extreme conditions.


Features:
  • Front panel sealed to IP65 for protection against water and dust
  • Modular mechanical design allows for flexible configuration and easy maintenance
  • Optional auto-brightness sensor for seamless day and night operation
  • VGA input standard, with optional AV, S-Video, and AV Looping support
  • MIL-STD-810G compliant for rugged performance in harsh environments
  • Wide range 9~36V DC input, compliant with MIL-STD-1275D
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4 : 3
Size 21.3" viewable diagonal area
Active Area 434(H) x 326(V) mm
Pixel Pitch 0.2115(H) x 0.2115(V) mm
Native Resolution 2048(H) x 1536(V)
Colors 1.07 B
Brightness 800
Contrast 1200 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x HDMI , 1 x PC Audio (Stereo Headphone Jack) , 1x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Power: MIL-STD-1275D (9~36V DC isolated)
POWER CONSUMPTION
Operation / Power Saving 111.25 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F), 10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 9 Kgs/10.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
