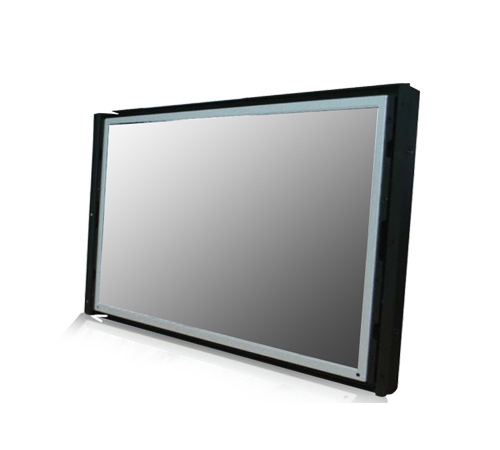

27" Wide Industrial Open Frame Metal Housing LCD Monitor, 1920 x 1080, 300 nits, VGA+DVI+HDMI (Model: YOPW2700HD)
27" Wide Industrial Open Frame Metal Housing LCD Monitor, 1920 x 1080, 300 nits, VGA+DVI+HDMI (Model: YOPW2700HD)
Main Feature
- High contrast color TFT-LCD Monitor support resolution up to 1920 x 1080.
- Power management system conforms to VESA DPMS and EPA Energy Star standards.
- Universal Power adapter.
- Support DDC1 & DDC2B for Plug & Play compatibility.
- Advanced OSD control for picture quality adjustment.
- Detachable stand for wall-mounting adjustment.
- Heavy duty monitor with steel frame.
- Custom design by request.
X
Inquiry/Quote Request
- Specifications
- Download
| Item | Specification |
| Panel Type | 27.0-inch TFT LCD |
| Screen Diagonal | 27.0-inch |
| Active Display Area (mm) | 597.6 (H) x 336.15 (V) |
| Pixel Pitch (um) | 311.25 (per one triad) x311.25 |
| Number of Pixels | 1920x1080 |
| Contrast Ratio | 3000:1 |
| Color Arrangement | R.G.B. Vertical Stripe |
| Brightness (cd/m˛) | 300 cd/m˛ |
| Viewing Angle(Typ.) | 89/89/89/89 (R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | DC +12V (+/- 10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Plug & Play | VESA DDC 1/2B |
| Optional for external auto light sensor | |
