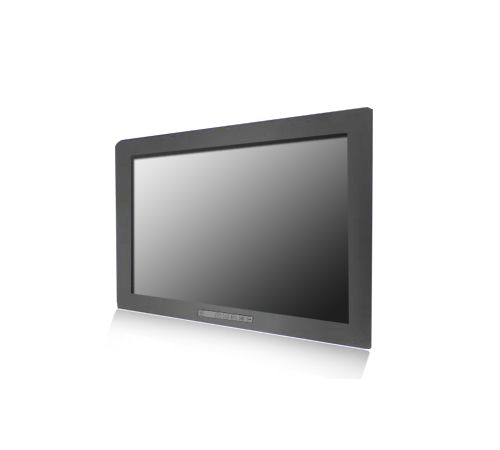

27" 1920x1080 Panel Mount Display w/ VGA+DVI+HDMI, Front OSD, DC 12V Power Input with Clamps (Model: YPMW2700FS)
27" Panel Mount Display 5mm metal front bezel / 1920x1080 / 300nits LED / VGA+DVI+HDMI signal input / Front OSD with hot key adjust brightness / DC 12V Power input / Panel Mount with Clamps / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Introducing the 27" Panel Mount Display YPMW2700FS, a robust and versatile industrial-grade LCD solution designed for embedded installations. With a Full HD 1920x1080 resolution, 300 nits brightness, and a durable 5 mm metal front bezel, this display offers crisp visuals and rugged reliability. Its multiple signal inputs (VGA, DVI, HDMI), front OSD with hotkey brightness adjustment, and support for both panel and VESA mounting make it ideal for control panels, kiosks, industrial systems, and other embedded applications. |
Features: |
|
| Active Area | 597.89 (H) x 336.31 (V) |
| Pixels H x V | 1920 x 1080 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| White Luminance | 300nits |
| Contrast Ratio | 1000 : 1 (Typ) |
| Optical Response Time | 14ms (Typ.) |
| Power Source | DC 12V Power input |
| Electrical Interface | Dual channel LVDS |
| Protective Glass | AR Coating Glass (3mm) |
| Signal Connector | VGA+DVI+HDMI |
| Temperature Range Operating Storage (Non-Operating) |
0 to +50 °C -20 to +60 °C |
| RoHS Compliance | RoHS Compliance |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
