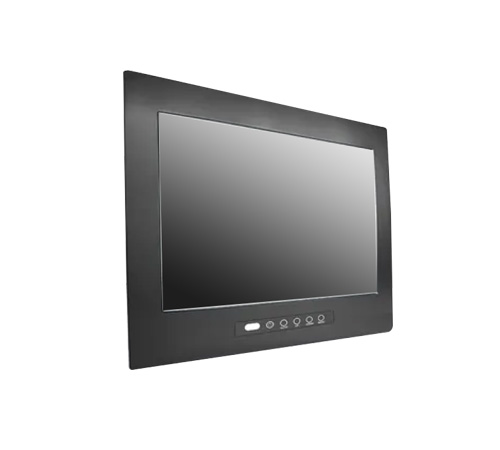

27" Military-Grade IP65 Front 4K LCD Monitor w/ PCAP Touch, HDMI/DP, MIL-STD-810/461 Compliance (Model: EMPMW27KTCA1)

27" Military-Grade IP65 Front Panel Mount 4K LCD Monitor with Front Bezel OSD, PCAP Touchscreen, 300-nit Brightness, 3×HDMI & 2×DP Inputs, Built-In Speakers, MIL-STD-810/461 Compliance, Wide Operating Temperature (-32°C to 55°C), and 9~36V DC Power Input.

27" Military-Grade IP65 Front Panel Mount 4K LCD Monitor with Front Bezel OSD, PCAP Touchscreen, 300-nit Brightness, 3×HDMI & 2×DP Inputs, Built-In Speakers, MIL-STD-810/461 Compliance, Wide Operating Temperature (-32°C to 55°C), and 9~36V DC Power Input.

Inquiry/Quote Request
EMPMW27KTCA1
  • Overview
  • Specifications
  • Download
The 27" Military-Grade IP65 Front Panel Mount LCD Monitor is engineered for rugged industrial, marine, and defense applications requiring reliable performance in harsh environments. Featuring a 4K UHD display with integrated PCAP touchscreen, MIL-STD-810 and MIL-STD-461 compliance, wide operating temperature support, and multiple video inputs, this monitor delivers durability, precision, and high-quality visual performance for mission-critical operations.


Features:
  • Modular Mechanical Design: Enables flexible product configuration and simplifies maintenance.
  • Built-in PCAP Touch Screen: Ideal for interactive applications requiring precise input.
  • Auto-brightness sensor available, enabling optimal visibility in both day and night environments.
  • MIL-STD-810 (Vibration/ Shock)
  • MIL-STD-461 (EMI/EMC)
  • Built-In Speakers
  • Power 9~36V DC
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 27" viewable diagonal area
Active Area 597.89(H) x 336.31(V) mm
Pixel Pitch 0.3114(H) x 0.3114(V) mm
Native Resolution 3840(H) x 2160(V)
Colors 1.073 B
Brightness 300
Contrast 3000 : 1
Response Time ≤ 9.5 ms (G-to-G)
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
3 x HDMI, 2 x DP , 1 x PC Audio (Stereo Headphone Jack) , 1 xDC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
9~36V DC
POWER CONSUMPTION
Operation / Power Saving 42.5watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -32°C ~ 55°C (25.6°F ~ 131°F), 10%~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F), 10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 12 Kgs/13.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
