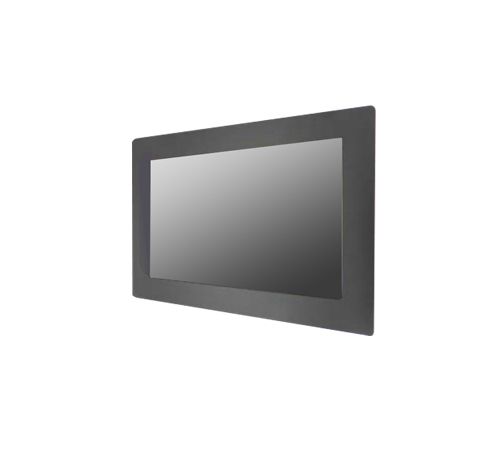

27" Full HD high brightness Panel Mount LCD Monitor with IP65 front, VGA/DVI/HDMI, AR coating glass (Model: YPMW2700PHBV2)
27" Monitor at 1080p with a High Brightness 5mm metal front bezel / Front IP65 / 1920x1080 / 1000nits LED / VGA+DVI+HDMI signal input / DC 24V Power input with AC Adapter / Rear OSD / Panel Mount with Clamp / 3mm AR Coating Glass
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YPMW2700PHBV2 is a premium 27-inch Full HD panel-mount LCD, meticulously designed for demanding industrial and outdoor environments. Its IP65-rated front panel ensures rugged protection against dust and moisture, making it exceptionally durable and reliable. Boasting enhanced brightness, this display delivers exceptional visibility-even in bright ambient or direct sunlight conditions. |
Features: |
|
| Active Area | 597.89 (H) x 336.31 (V) |
| Pixels H x V | 1920 x 1080 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | AHVA Mode |
| White Luminance | 1000 (center, Typ) cd/m˛ |
| Contrast Ratio | 1000 : 1 (Typ) |
| Optical Response Time | 14ms (Typ.) |
| Power Source | DC 24V Power input with AC Adapter |
| Electrical Interface | Dual channel LVDS |
| Protective Glass | AR Coating Glass (3mm) |
| Signal Connector | VGA+DVI+HDMI |
| Temperature Range Operating Storage (Non-Operating) |
0 to +50 °C -20 to +60 °C |
| RoHS Compliance | RoHS Compliance |
