27" Front IP65 Wide Marine Bridge Display Monitor w/ HDMI, VGA, Composite Video, IEC60945, Touch, 24V DC (Model: AMARW2700-TC-DC)

Front IP65 27" Wide Marine Bridge Display Monitor 1920 x 1080 350nits, HDMI, VGA, composite video, audio input, IEC60945 certificated Front hyper dimming knob control backlight brightness from nearly 0%-100% Internal Power Adapter , Power is with internal isolated 24V DC, with +V and -V terminal block.

Front IP65 27" Wide Marine Bridge Display Monitor 1920 x 1080 350nits, HDMI, VGA, composite video, audio input, IEC60945 certificated Front hyper dimming knob control backlight brightness from nearly 0%-100% Internal Power Adapter , Power is with internal isolated 24V DC, with +V and -V terminal block.

Inquiry/Quote Request
AMARW2700-TC-DC
  • Overview
  • Specifications
  • Download

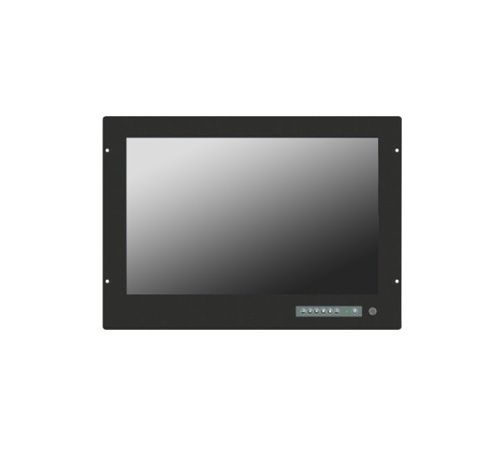

AMARW2700-TC-DC, a 27-inch, front-IP65 rated marine bridge display monitor designed for the most demanding maritime environments. Built with ruggedness and reliability in mind, this display offers waterproof protection, high brightness for direct sunlight readability, and precise touch operation. Whether for ship navigation systems, control stations, or integrated bridge systems, this monitor ensures durability, clarity, and performance in challenging conditions.


Features:
  • The front hyper-dimming knob allows precise control of backlight brightness, ranging from nearly 0% to 100%.
  • It features a rugged construction with a front bezel that is NEMA4 / IP65 compliant.
  • The front panel is protected by hardened glass, with optional anti-reflective (AR) glass and touch functionality.
  • It includes front OSD control buttons for optimized display settings.
  • Built-in 2x 2-watt stereo speakers provide audio output.
  • The unit comes standard with HDMI, DVI, VGA, Composite Video, and Audio inputs.
  • It can be panel (flush) mounted with clips and is compatible with standard VESA mounts, with an optional robust mounting bracket available.
  • It is IEC60945 certified.
  • No Front Handles
  • 10-Point Projected Capacitive Touchscreen.
TFT Characteristics:
Screen Size 27 inch wide TFT LCD
Backlight Type LED
Resolution 1920x1080
Contrast Ratio 1000:1
Brightness ( cd/m2 ) 350 (high brightness 700 cd/m2 for option)
View Angles ( H/V ) 178/178
Max. Color 16.7M

Input Signals:
HDMI Signal HDMI (Female)
DVI  Signal DVI-D (Female)
VGA Signal D-SUB 15P connector (Female)

Composite Video RCA Phono plug
Audio 3.5" jack
DC Power Input Screw Terminal Block
Touch Screen USB-A connector (Female)
RS-232 Remote (option) D-SUB 9P connector ( Female )

Power Specifications:
DC Power Input Screw Type Terminal Block with internal isolate DC 12V/24V/48V/125V power module
AC Power Input ( option ) Standard IEC Type power cord with Internal Power Adapter , 100-240V AC Input

Mechanical and Environmental:
IP Protect Front IP65 Grade
Mounting Panel ( Flush ) Mount, VESA Mount, Robust Bracket, Sun-visor Bracket
Construction Alminum Front Bezel + Metal Housing
Operating Temperature 0 - 50 deg. C
Operating Humidity 5% - 95% ( non -condensing )
Anti-Vibration 5 - 500 Hz / 1 Grms PTP
Anti-Shock 15G / Peak ( 11 ms )
Physical Dimension (WxHxD) 680 x 460 x 66 mm
Packing Dimension (WxHxD) 810 x 590 x 220 mm (estimated)
Net Weight / Gross Weight 15 / 18 KG estimated
Certification and Approvals CE / FCC / RoHs / IEC60945

User Controls:
Power On/Off via front buttons
VR Brightness Knob adjustment
Power Mode Status LED indicator
On Screen Display control(OSD)

Available Options:
AR Hardness: Glass 3mm Anti-Reflective Protect Glass
DC Power: Isolate 12V/24V/48V/125V DC Power/9~36V wide DC
Stand & Roof Mounting Bracket
Rotary Plate Robust Bracket
Sun-Visor Bracket
