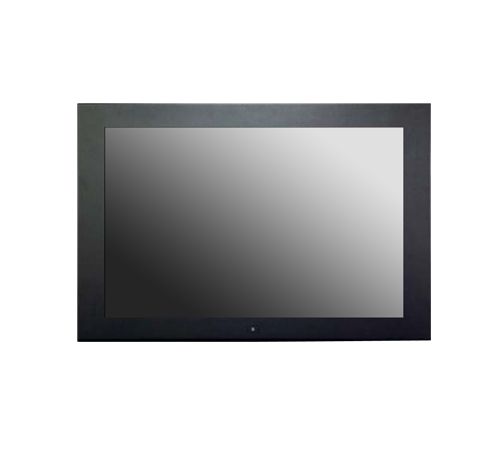

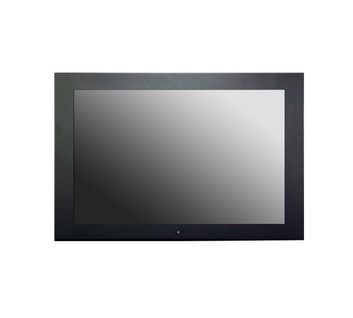

27" Front IP65 Panel Mount LCD Monitor w/ VGA, DVI, HDMI, PCAP Touch, 24VDC with Terminal Block (Model: ID-i27C)

27" Panel Mount LCD Monitor, 1920x1080, 250nits PCAP Touch / Front IP65, Front OSD Design, VGA, DVI, HDMI, USB ( for Touch use ) and 24VDC with Terminal Block

27" Panel Mount LCD Monitor, 1920x1080, 250nits PCAP Touch / Front IP65, Front OSD Design, VGA, DVI, HDMI, USB ( for Touch use ) and 24VDC with Terminal Block

Inquiry/Quote Request
ID-i27C
  • Overview
  • Specifications
  • Download
The 27" IP65 front-panel mount LCD monitor (Model: ID-i27C) from i-Tech is a rugged, high-durability display engineered for industrial, marine, and outdoor applications. Its front-sealed IP65-rated bezel ensures water- and dust-resistance, making it ideal for harsh environments - while the panel-mount design supports secure installation in control panels, kiosks, or machinery enclosures. Whether deployed in manufacturing floors, marine bridges, outdoor kiosks, or industrial workstations, the ID-i27C delivers reliable performance and long-term service in demanding conditions.


Features:
  • 27" Industrial Panel / 1920x1080 / 250nits
  • Panel Mount ( with 3mm front bezel ) / clamp with VESA mount
  • P-CAP Touch / Front IP65
  • Front OSD Design / Speakers
  • All Black Powder Coating
  • I/O: VGA, DVI, HDMI, USB ( for Touch use ) and 24VDC with Terminal Block
Display Viewing Size Image 27"
Active Display Area (mm) 597.89(H) x 336.31(V) mm
Pixel Pitch (mm) 0.3114(H) x 0.3114(V) mm
Resolution 1920x1080
Contrast Ratio  1000:1 (typ.)
Color 16.7M
Brightness 250nits
Viewing Angle -85-85 (H); -80-80 (V)
Recommended Resolution 1920x1080 @60Hz
Power Source 24VDC with Terminal Block
Management VESA DPMS Compliant
