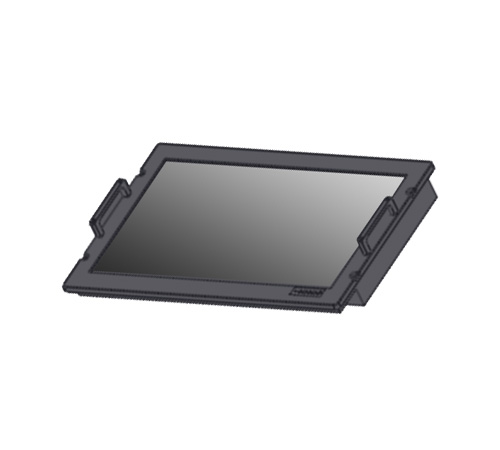

27" Rugged High Impact Military Display for Railway Application Bezel w/ VGA, HDMI, DP, AC100~264V (Model: NmilW2700-EN51)

27" Rugged IK-10 (IEC-62262) Rugged High Impact Military Display for Railway Application Bezel with VGA / HDMI / DP, AC100~264V

27" Rugged IK-10 (IEC-62262) Rugged High Impact Military Display for Railway Application Bezel with VGA / HDMI / DP, AC100~264V

Inquiry/Quote Request
NmilW2700-EN51
  • Overview
  • Specifications
  • Download



Features:
  • Military-grade 64430 aluminum alloy chassis with anti-corrosion
  • Rugged steel, IP54 front, IK10 protection glass
  • 27" FHD LCD, 300 cd/m˛, 16.7M colors
  • VGA, HDMI, DP inputs
  • AC 100–264V power
  • Semi-gloss black, 2-4 handles
  • Excludes Military/IEC testing
  • Environmental
      Railway application
      EN 50155 compliant Vibration
      EN 61373 compliant Shock
      EN 61373 compliant
LCD Display Size 27" TFT LCD diagonal
Resolution 1920 x 1080 FHD
Brightness 300 cd/m2
Contrast Ratio 3000 : 1
Aspect Ratio 16 : 9
Display Color 16.7 M
LED Backlight LED backlight
Viewing Angle 89 / 89 / 89 / 89 ultra wide angles
Protective Glass Protective Glass IK10 Protection Glass
Glass Type build in ultra thick strengthen protection glass
EMI / EMC EMI / EMC Mesh Yes, built in
Mechanical Front Bezel Military grade 64430 Aluminum alloy with anti-corrosion treatment
Mount Front Mount, Console Mount
VESA-100 Mount
Enclosure Heavy-duty galvanized steel with anti-corrosion treatment
Color Semi-gloss in black
Handle 2 x aluminum alloy handles for easy handling
Mount Front Mount Yes, front mount
Panel Mount Yes, panel mount
VESA Mount Yes, VESA-300x200 mount
Control Button OSD Control Buttons On-Off, Brightness, Contrast, etc.
OSD Buttons 5-Key OSD control buttons
Dimension Exclude Front Bezel 683 (W) x 429 (H) x 69 (D)mm
Include Front Bezel 683 (W) x 429 (H) x 83 (D) mm
Handles Yes, 2 rugged grips
I/O Port VGA 1 x VGA
DVI 1 x DP
HDMI 1 x HDMI
Audio 2 x Audio
Power 1 x AC or DC with military circular connector, dust cap, and mating

Power Supply AC Power Input AC100~264V
Isolation Yes
Over Voltage Protection Yes
Over Current Protection Yes
Power Supply > 12 countries safety approvals
Safety
Approvals
Environmental Railway application EN 50155 compliant
Vibration EN 61373 compliant
Shock EN 61373 compliant
Operating Temperature 0° to +45°C
Storage Temperature -20° to +80°C
Humidity 5% to 95% R.H. at 35°C, non-condensing
IP Rating IP54 front
EMI / EMC CE Approval
FCC Approval
