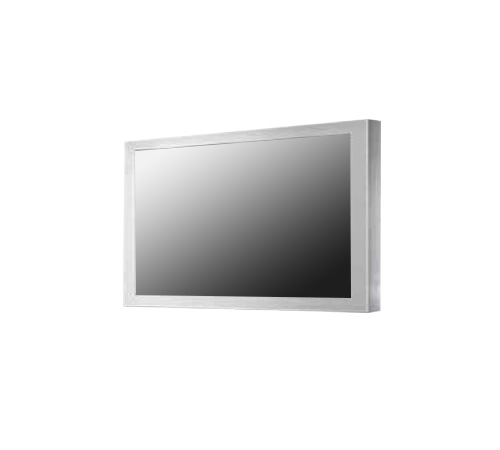

24" IP66/NEMA4X Stainless Steel Chassis LCD Monitor HDMI+VGA Input w/ 5 Wire Resistive Touch (Model: TICW2400-TR)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount, Water/Dust proof Wide Screen 24" LCD monitor, 1920x1080, 300nits, without speaker, Rear OSD, VESA Mount, with 5 Wire Resistive Touch Screen and USB Controller, HDMI+VGA Input

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
Stainless Steel Enclosure
Complete custom design/solution for OEM customers
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide /24" viewable diagonal area
	Active Area / Pixel Pitch	531.36(H) x 298.89(V) mm / 0.2768(H) x 0.2768(V) mm
	Native Resolution / Colors	1920(H) x1080(V)/16.7M
	Brightness / Contrast	300 cd/m2 (typ) / 1000 : 1
	Response Time	< 5 ms
	Viewing Angle (typical)	H.170° (- 85° ~ + 85°) , V 160°(- 80° ~ + 80°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv: 50 -75Hz
	Audio System	N/A
Input Terminals	1 xVGA, 1 xHDMI, 1 xUSB, 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	12V DC in
Power Consumption	Operation / Power Saving	61.25 watt, < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	Please refer to Drawing
	Carton	WxHxD=TBD
Weight	N.W/G.W	12Kgs/13.5Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
