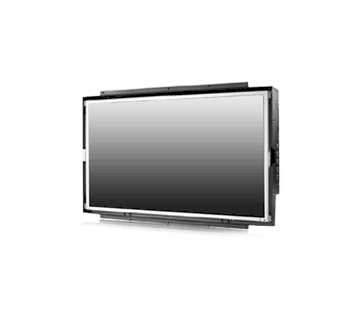

24" Open Frame LCD Monitor LED-500nits VGA, DVI, RS232 (Debug), Wide Temp., AC-IN w/ Built-in PWR (Model: EOPW2400WT-V2)
Open Frame, 24" LCD Monitor, 1920x1200, LED-500nits VGA, DVI, RS232 (Debug) WV(178°/178°) Wide Temp.(-20~55C) AC-IN w/ Built-in PWR
EOPW2400WT-V2
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
Wide |
| Size |
24.1" viewable diagonal area |
| Active Area |
518.4(H) x 324.0(V) mm |
| Pixel Pitch |
0.27(H) x 0.27(V) mm |
| Native Resolution |
1920(H) x 1200(V) |
| Colors |
16.7 M |
| Brightness |
500 |
| Contrast |
1000 : 1 |
| Response Time |
≤ 14 ms (G-to-G) |
| Viewing Angle (typical) |
H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| INPUT SOURCES |
| PC System |
Signal |
Analog RGB (0.7/1.0 V, 75 ohms) |
| Sync |
Separate Sync, Composite Sync, Sync On Green |
| |
Frequency |
F: 30 - 82Khz , F: 50 -75Hz |
| Audio System |
2W speaker x 2 |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| 1 x VGA, 1 x DVI, 1 x RS232(Debug), 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz |
| POWER CONSUMPTION |
| Operation / Power Saving |
26 watt , < 1 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
-20°C ~ 55°C (-4°F ~ 131°F) , 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
-20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
|
| Carton |
W x H x D = TBD |
| WEIGHT |
| N.W. / G.W. |
12 Kgs/13.5 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| TOUCH |
VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| Resistive Touch |
AV-IN |
High Brightness Panel |
24V DC-IN |
Motion Sensor |
| Projected Capacitive Touch |
AV Looping |
Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| Infrared Touch |
HDMI / DP |
Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| Protected Glass |
HD-SDI |
Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| Optical Bonding |
|
UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
|
Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
|
|
|
Stainless 316 Enclosure |
|
