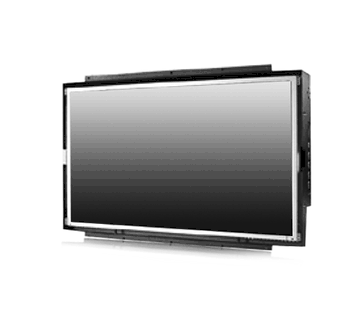

23.8" Military Application Open Frame Compliance MIL-STD-810G (Anti-Shock and Anti-Vibration) (Model: EMOPW2380)

Military Application Open Frame 23.8"-1920x1080 LED-400 nits, VGA, HDMI, WV(178°/178°),WT(-20~70°) AC-IN w/Built-in PWR, Compliance MIL-STD-810G (Anti-Shock and Anti-Vibration)

Military Application Open Frame 23.8"-1920x1080 LED-400 nits, VGA, HDMI, WV(178°/178°),WT(-20~70°) AC-IN w/Built-in PWR, Compliance MIL-STD-810G (Anti-Shock and Anti-Vibration)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV.SV.AV-Looping
    • Complete custom design/solution for OEM customers
    • Compliance MIL-STD-810G (Anti-Shock and Anti-Vibration)
Inquiry/Quote Request
EMOPW2380
  • Specifications
  • Download

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide /23.8" viewable diagonal area
Active Area / Pixel Pitch 527.04(H) x 296.46(V) mm / 0.2745(H) x 0.2745(V) mm
Native Resolution / Colors 1920(H) x1080(V)/16.7M
Brightness / Contrast 400 cd/m2 (typ) / 3000 : 1
Response Time < 16 ms
Viewing Angle (typical) H.178°(-89°~ + 89°) , V 178°(- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv: 50 -75Hz
Audio System N/A
Input Terminals 1 xVGA, 1 xHDMI, 1 xPC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power AC-IN w/Built-in PWR
Power Consumption Operation / Power Saving 13.4 watt, < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20°C ~ 70°C (- 4 °F ~ 158°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD=TBD
Weight N.W./G.W. TBD
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)


Option MIL
  • Environmental: MIL-STD-810, DO-160
  • EMI/EMC: MIL-STD-461/462
  • Panel construction & lighting: MIL-P-7788
  • Power: MIL-STD-704, MIL-STD-1275
  • Shock-MILS 901D
  • Vibration-MIL STD 167
