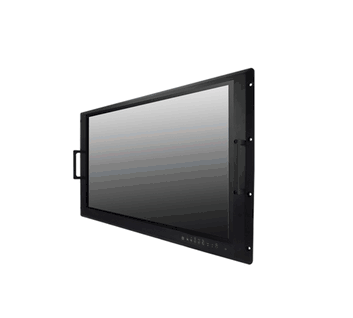

24" IP65 Marine Panel Mount LCD Display 250nits, VGA+DVI-D w/ 3mm AR Glass, Front Handles (Model: WPM-MAR-W2400A1-ST02)
Rugged 24" Marine Panel Mount LCD Display IP65 1920x1080, 250nits, 0-100% Dimming, wide Temp -10 to 55C, RS232 Control, VGA+DVI-D, AC Power Input (90 to 265V AC Power Input) , No touch, with Glass (3mm Anti-reflective Glass) and added Front Handles
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Marine Panel Mount Displays are an essential component of marine electronics systems, providing reliable and accurate information to help ensure the safety and efficiency of marine operations. Displays are designed to be rugged and durable, with features such as waterproofing, shock resistance, and corrosion resistance. |
Features: |
|
| DISPLAY | |||
| Resolution | 1920x1080 | Size | 24 inches |
| Contrast Ratio | 5000:1 | Panel Brightness | 250 nits |
| View Angles | 89,89,89,89 | Active Area | 531.36x298.89 mm |
| Touch / Glass | AR Glass | Display Color | 16.7M Colors |
| ENVIRONMENT | |||
| Operating Humidity | 5% to 95% | Operating Temperature | -10~55°C |
| Shock | 15G,11ms duration | Vibration | 0.7g@DNVGL CG-0339 (Class A) |
| IP rating | IP66 (Front Side) | ||
| Certification | |||
| Certification | IACSE10, IEC60945, DNVGLCG0339, FCC, CE | ||
| MECHANICAL | |||
| Dimension | 593 x 356.7 x 62.7 | Enclosure | Metal Housing with Aluminum Bezel |
| Mounting | VESA Mount/ Panel Mount | Cut out | 566 x 362 mm |
| Cooling System | Fanless Design | Weight | 9.7 kg |
| IO PORTS | |||
| Video | 1 x VGA 1 x DVID 1 x Composite 1 x SVideo |
Serial Port | 1 x RS232 for Remote Control 1 x RS232/USB for Touch Screen |
| POWER | |||
| Power Rating | 90 to 265V AC Power input | Consumption | 50W (Typical) |
| ACCESSORIES | |||
| Accessories | 1 x User Manual. 1 x CD for Touchscreen Driver Tools. 1 x DVI Cable. 1 x VGA Cable. 1 x RS232 Serial Cable. 1 x SVideo Cable. 1 x Composite Cable. |
||
