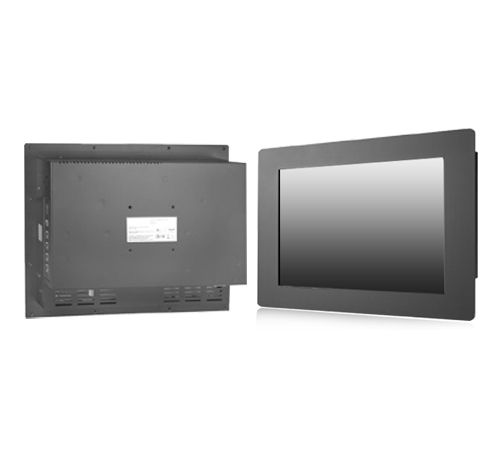

24" IP65 front Panel Mount (Metal-3mm) LCD monitor, VGA + DVI + HDMI, Side OSD w/ Touch (Model: EPMW2400HDIP-TR-C1)

IP65 front Panel Mount (Metal-3mm), 24" LCD monitor, 1920 x 1080, 300 nits, VGA+DVI+HDMI, Side OSD, including rear screw/Clamp/VESA Mount with 5 Wire Resistive Touch Screen and USB Controller Integrated IP65 Front Panel Al-5mm

Modularize mechanical design provides flexible product configuration and easy maintenance
Optional build-in touch screen for interactive application
Available with auto-brightness sensor offers application in day and night
VGA connector with optional AV.SV.AV-Looping
Complete custom design/solution for OEM customers
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 24" viewable diagonal area
	Active Area / Pixel Pitch	531.40(H) x 298.90(V) mm / 0.2768(H) x 0.2768(V) mm
	Native Resolution / Colors	1920(H) x 1080(V) / 16.7M
	Brightness / Contrast	300 cd/m2 (typ) / 1000 : 1
	Response Time	< 5 ms
	Viewing Angle (typical)	H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
	Audio System	2W Speaker x 2
Input Sources	VGA+DVI+HDMI
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
Convenient Features	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	Internal power supply with universal / Auto-Sensing, AC100 to 240V AC, 50/60 Hz
Power Consumption	Operation / Power Saving	18W-24W
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD
Weight	N.W. / G.W.	12 Kgs / 13.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
