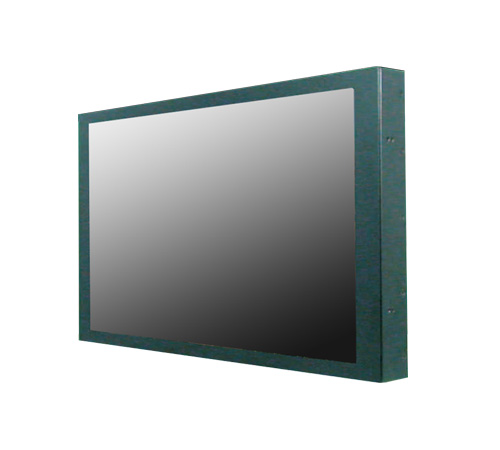

24" Wide Front IP65 Chassis LCD Monitor 300nits w/ VGA, HDMI, DP, Touch w/ EETI (Model: CCHW2400X-TR-ST)

24" Wide Front IP65 Industrial Panel Chassis LCD Monitor 1920x1200, 300nits, 89/89/89/89, Resistive Touch with EETI control card, Speakers / Table Stand Landscape and Portrait, VESA mount

24" Wide Front IP65 Industrial Panel Chassis LCD Monitor 1920x1200, 300nits, 89/89/89/89, Resistive Touch with EETI control card, Speakers / Table Stand Landscape and Portrait, VESA mount

Inquiry/Quote Request
CCHW2400X-TR-ST
  • Overview
  • Specifications
  • Download
Front IP65 Industrial Panel Chassis LCD Monitor is a robust and reliable display solution that is well-suited for use in harsh industrial environments where standard consumer-grade monitors may not be able to withstand the conditions.


Features:
  • High Contrast color TFT LCD Monitor support resolution up to FULL HD (1920x1200)
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Full consideration for touch screen installation and application.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting application.
  • Heavy duty Monitor with steel frame.
  • Custom design by request.
Active Area [mm] 533.60 (H)x 301 (V)
Pixels H x V   1920(x3)x1200
Pixel Pitch [mm] 0.270 (per one triad) x 0.270
Pixel Arrangement   R.G.B. Vertical Stripe
Display Mode   AHVA mode, Normally Black
White Luminance [cd/m2] 300 (center, Typ) @ 60mA
Contrast Ratio   1000 : 1 (Typ)
Optical Response Time [msec] 14 (Typ., on/off)
Power Supply Input Voltage (VDD) [Volt] +12V
Weight [Grams] 2500(Typ)
Physical Size (Hx VxD) [mm] 569.60 (H)x 337 (V) x 58.60 (D) (Typ)
Electrical Interface   Dual channel LVDS
Surface Treatment   Anti-Glare Treatment
Support Color   1.07B colors
Temperature Range
Operating
Storage (Non-Operating)
[°C]
[°C]
0 to +40
-20 to +50
RoHS Compliance   RoHS Compliance
