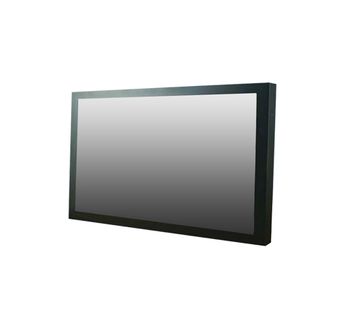

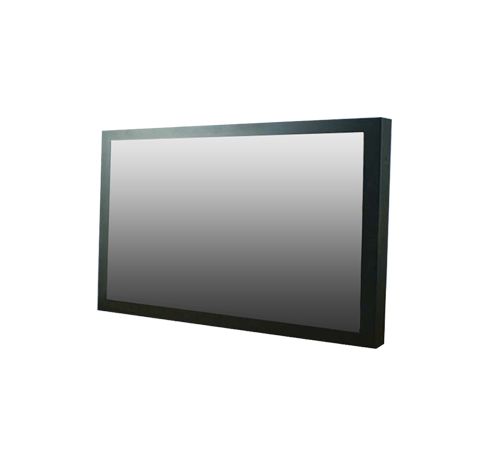

24" 1920x1200 / 300nits-LED Chassis Mount LCD Monitor w/ VGA, DVI, HDMI & PCAP Touch (Model: OCHW2400HD-TC)
Chassis LCD Monitor / 24" Wide / 1920x1200 / 300nits-LED / VGA+DVI+HDMI signal input / PCAP Touch with USB controller (10-points Touch in Win 7/10) / Rear OSD / 100x100 VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The iTech 24-inch chassis-mount LCD monitor OCHW2400HD-TC combines high-definition display performance with a 10-point PCAP touch interface. Designed for industrial and professional applications, it ensures reliable operation in demanding environments, offering seamless touch response, robust chassis mounting, and easy integration into control panels or kiosks. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 24.0-inch TFT LCD |
| Screen Diagonal | 24.0-inch |
| Active Display Area (mm) | 518.4x324mm |
| Number of Pixels | 1920x1200 |
| Contrast Ratio | 3000:1 |
| Display Color | 16.7M colors (true 8-bit) |
| Brightness (cd/m) | 300nits |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | DC +12V (+/- 10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +60°C |
| Plug & Play | VESA DDC 1/2B |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
