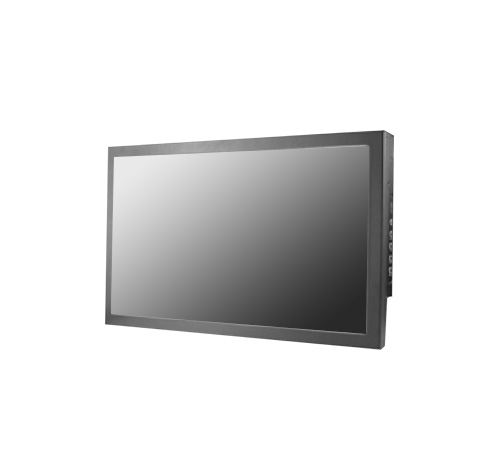

24" Chassis Mount LCD Display Monitor VGA Input, WT(-20~70C), Built-in PWR w/ PCAP 2Points Touch (Model: ECHW2400WT-PCAP)

Chassis Mount LCD Display 24" LCD monitor, 1920x1080, LED-250nits, VGA, WT(-20~70C), AC-IN w/Built-in PWR + PCAP 2 POINTS touch Screen with CLEAR 2mm glass and USB Controller (FINGER AND THIN GLOVE ONLY)

Chassis Mount LCD Display 24" LCD monitor, 1920x1080, LED-250nits, VGA, WT(-20~70C), AC-IN w/Built-in PWR + PCAP 2 POINTS touch Screen with CLEAR 2mm glass and USB Controller (FINGER AND THIN GLOVE ONLY)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV,SV,AV-Looping
    • Auto Power On: Monitor is always "ON" when connect to power.
    • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.
    • Complete custom design/solution for OEM customers
Inquiry/Quote Request
ECHW2400WT-PCAP
  • Specifications
  • Download

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide /24" viewable diagonal area
Active Area / Pixel Pitch 531.36(H) x 298.89(V) mm / 0.2768(H) x 0.2768(V) mm
Native Resolution / Colors 1920(H) x1080(V)/16.7M
Brightness / Contrast 250 cd/m2 (typ) / 1000: 1
Response Time < 5 ms
Viewing Angle (typical) H.1700 (- 85° ~ + 85°) , V 160°(- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv: 50 -75Hz
Audio System Optional Speaker
Input Terminals VGA Input
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal /Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 61.25 watt, < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -20°C ~ 70°C (-4°F ~ 158°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD=TBD
Weight N.W./G.W. 12Kgs/13.5Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
