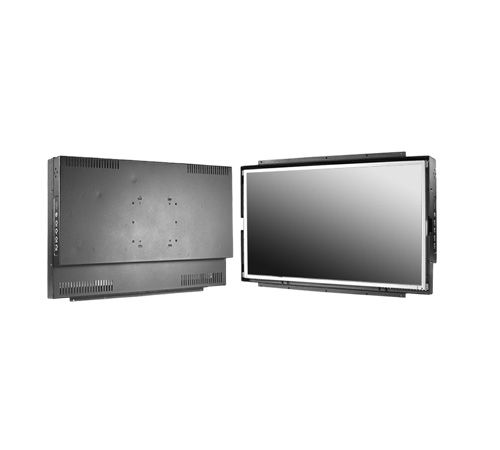

24" Open Frame LCD Monitor w/ VGA, HDMI, DVI, 10Point PCT Touch / USB, 120 AC Input Power, (Model: EOPW2400-PCT9)

Open Frame, w24"-1920x1200, LED-400nits, VGA+HDMI+DVI, 10 Point PCT Touch (3mm,USB,10pts), 120 AC Input Power, Fan (91mm Model) 10 Point Touchscreen/USB

Open Frame, w24"-1920x1200, LED-400nits, VGA+HDMI+DVI, 10 Point PCT Touch (3mm,USB,10pts), 120 AC Input Power, Fan (91mm Model) 10 Point Touchscreen/USB

Inquiry/Quote Request
EOPW2400-PCT9
  • Overview
  • Specifications
  • Download
The iTech EOPW2400-PCT9 delivers a high-performance 24-inch open-frame LCD touchscreen monitor designed for seamless integration into kiosk, industrial, retail, and embedded systems. Featuring broad connectivity, a slim open-frame format, and responsive projected-capacitive (PCAP) touch technology, this display offers a durable and stylish solution for modern interactive applications, ensuring both reliability and visual clarity in demanding environments.


Features:
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Projected Capacitive Touch, 10*Touch Points
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV,SV,AV-Looping
  • Auto Power On: Monitor is always "ON" when connect to power.
  • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 24.1" viewable diagonal area
Active Area 518.4(H) x 324.0(V) mm
Pixel Pitch 0.27(H) x 0.27(V) mm
Native Resolution 1920(H) x 1200(V)
Colors 16.7 M
Brightness 400
Contrast 1000:1
Response Time ≤ 14 ms (G-to-G)
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1x VGA, 1x DVI, 1x HDMI, 1x USB (Touch), 1 xPC Audio (Stereo Headphone Jack), 1 xDCPower Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
120 AC Input Power
POWER CONSUMPTION
Operation / Power Saving 26 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10%~ 90% (no condensation)
DIMENSIONS
Physical
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 12 Kgs/13.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
