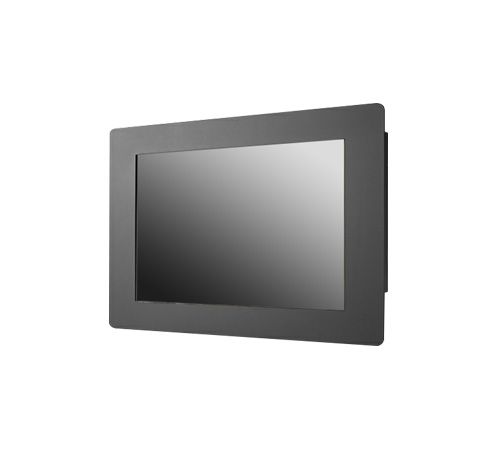

24" IP65 Front Panel Mount LCD Monitor LED-400nits, VGA, HDMI, WV(178°/178°), AC-IN, MIL-STD-810G / MIL-STD-461E (Model: EMPMW2400X)

IP65 Front Panel Mount, 24" LCD monitor, 1920x1200, LED-400 nits, VGA, HDMI inputs, WV(178°/178°), AC-IN w/Built-in PWR Internal power supply with universal / Auto-Sensing, AC90 to260V, 50/60 Hz

IP65 Front Panel Mount, 24" LCD monitor, 1920x1200, LED-400 nits, VGA, HDMI inputs, WV(178°/178°), AC-IN w/Built-in PWR Internal power supply with universal / Auto-Sensing, AC90 to260V, 50/60 Hz

Inquiry/Quote Request
EMPMW2400X
  • Overview
  • Specifications
  • Download
The 24-inch Military IP65 Front Panel Mount LCD Monitor (EMPMW2400X) from iTech is designed for demanding military and industrial environments that require rugged performance and reliability. With its IP65-rated front panel, this monitor offers superior protection against dust, moisture, and harsh conditions. It delivers exceptional display clarity and durability, making it ideal for control systems, defense applications, and outdoor operations.


Features:
  • Optional Built-in Touchscreen for interactive applications
  • Modular mechanical design allows for flexible configuration and easy maintenance
  • Optional auto-brightness sensor for seamless day and night operation
  • VGA input standard, with optional AV, S-Video, and AV Looping support
  • MIL-STD-810G / MIL-STD-461E compliant for Military Standard Compliance
  • 60 Hz Refresh Rate, Contrast Ratio: 1000:1
  • Military Standard Compliance: As per MIL-STD-810G and MIL-STD-461E
  • Operating Temperature: -20°C to +60°C
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 24.1" viewable diagonal area
Active Area 518.4(H) x 324.0(V) mm
Pixel Pitch 0.27(H) x 0.27(V) mm
Native Resolution 1920(H) x 1200(V)
Colors 16.7M
Brightness 300
Contrast 1000 : 1
Response Time ≤ 14 ms (G-to-G)
Viewing Angle (typical) H. 178(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA, 1 x HDMI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
AC-IN w/ Built-in PWR Internal power supply with universal / Auto-Sensing, AC90 to260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving 26 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F), 10%~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F), 10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 12 Kgs/13.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
