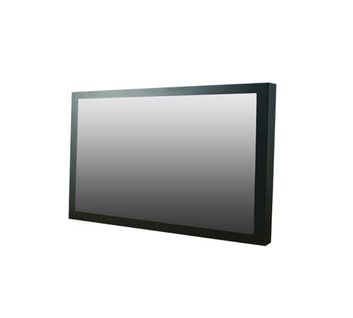

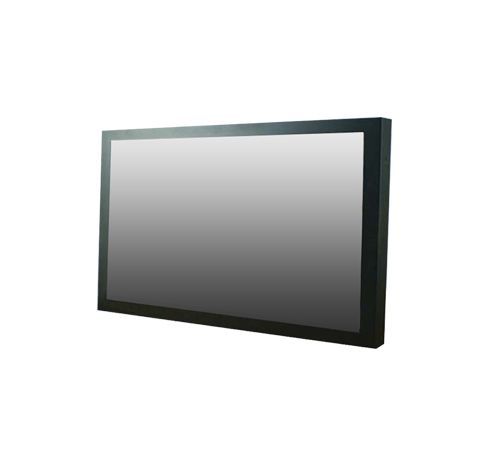

24" 1920x1200 Chassis LCD Monitor 300nits w/ VGA+DVI+HDMI, Side OSD (Model: YCHW2400X)
24" Chassis LCD Monitor / 1920x1200 / 300nits LED / VGA+DVI+HDMI signal input / Side OSD / VESA Mount (100x100) (M4)
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YCHW2400X is a 24-inch industrial-grade chassis LCD monitor designed for demanding applications where reliability, durability, and high visual clarity are essential. Built with a rugged metal chassis and equipped with versatile video input options, this monitor is ideal for control rooms, automation systems, and industrial workstations. Its wide viewing angle and excellent resolution ensure consistent performance in mission-critical environments. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 24.0-inch TFT LCD |
| Screen Diagonal | 24.0-inch |
| Active Display Area (mm) | 518.4x324mm |
| Number of Pixels | 1920x1200 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (true 8-bit) |
| Brightness (cd/m) | 300nits |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | DC +12V (+/- 10%) |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50 °C |
| Storage Temperature | -20 ~ +60°C |
| Plug & Play | VESA DDC 1/2B |
