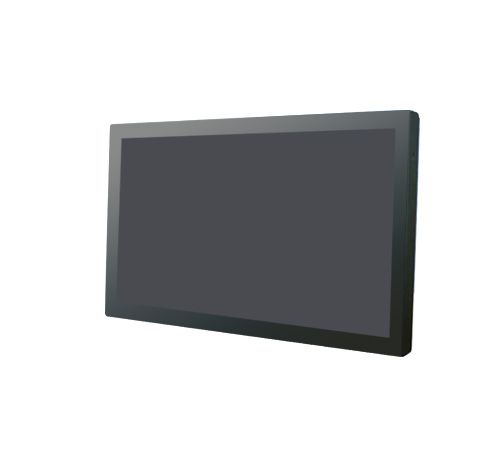

24" Front IP66 Chassis Touch LCD Monitor 1500nits w/ VGA, DVI, HDMI, PCAP Touch, 2W speaker x2 (Model: YCHW2400-PCT)
24" Chassis Touch LCD Monitor / Front IP66 / 1920x1080 / 1500nits LED / Operature Temp -20~60C / VGA+DVI+HDMI signal input / 2W speaker x2 / PCAP Touch Screen with USB controller / Air Curtain between LCD Panel and touch screen / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YCHW2400-PCT is a rugged 24-inch chassis mount LCD monitor designed for industrial and commercial applications requiring durability, high visibility, and reliable touch functionality. With a front IP66-rated panel, full HD resolution, 1500 nits brightness, and projected capacitive (PCAP) touch screen, this monitor delivers crystal-clear performance even in challenging environments. It supports VGA, DVI, and HDMI inputs, includes built-in speakers, and features a unique air curtain between the LCD panel and touch screen to reduce fog and condensation. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 24.0-inch TFT LCD |
| Screen Diagonal | 24.0-inch |
| Active Display Area (mm) | 531.36x298.89mm |
| Number of Pixels | 1920x1080 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (true 8-bit) |
| Brightness (cd/m) | 1500nits |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA+DVI+HDMI |
| Power Source | AC 90~264V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -20 ~ +60°C |
| Plug & Play | VESA DDC 1/2B |
