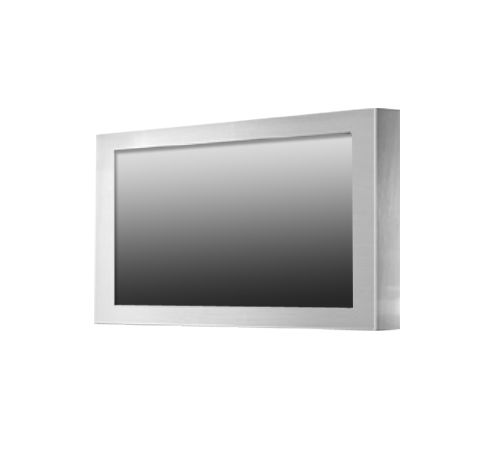

24" Chassis Mount Stainless Steel w/ Full IP66 AR Glass / Rear OSD VGA, BNC, 100-240VAC (Model: ECHW2400C-SIP-BNC-O)

24" 1920x1080 Chassis Mount Industrial Panel Stainless Steel 304 Enclosures with Full IP66 / Wall mount AR Glass / Rear OSD Design with VGA, BNC Female (I/P), BNC Female (O/P) and 100-240VAC Power Cord

24" 1920x1080 Chassis Mount Industrial Panel Stainless Steel 304 Enclosures with Full IP66 / Wall mount AR Glass / Rear OSD Design with VGA, BNC Female (I/P), BNC Female (O/P) and 100-240VAC Power Cord

Inquiry/Quote Request
ECHW2400C-SIP-BNC-O
  • Overview
  • Specifications
  • Download
Experience rugged, industrial-grade visualization with the 24-inch chassis mount stainless steel full IP66 monitor from i-Tech Company. Designed to deliver high performance in the most challenging environments, this monitor features a durable stainless steel chassis, AR (anti-reflective) glass, comprehensive sealing to IP66 standards, and versatile SIP/BNC connectivity. Whether you're operating in harsh outdoor conditions or demanding indoor industrial settings, this monitor offers reliable, high-clarity display performance engineered for longevity and resilience.


Features:
  • 24" Industrial Panel / 1920x1080 / 250nits
  • Stainless Steel 304 Enclosures with Full IP66 / Wall mount
  • AR Glass / Rear OSD Design
  • I/O (All Connectors are IP67 Waterproof Connectors / 6ft long ): VGA, BNC Female ( I/P ), BNC female (O/P) and 100-240VAC Power Cord
  • AD Board Power Auto Turn on when there is no video signal
Display Viewing Size Image 24"
Active Display Area (mm) 535(H) x 302 (V)
Pixel Pitch (mm) 0.276(H)x0.276 (V)
Resolution 1920 x 1080
Contrast Ratio 3000 : 1 (typ.)
Color 16.7M(8 bits/colors)
Brightness 250nits
Viewing Angle -89~89(H) ; -89~89 (V)
 Recommended Resolution 1920 x 1080 @ 60Hz
Signal Connector VGA, BNC Female ( I/P ), BNC female (O/P)

Power Source 100-240VAC Power Cord
Consumption 21W typical, normal operation
Management VESA DPMS Compliant
