23.8" Chassis LCD Monitor LED-700nits w/ VGA, HDMI, DVI, AC-IN w/ Built-in PWR, NVIS Compatible (Model: ECHW2380WT-NV)

Chassis, 23.8" - 1920x1080, LED-700 nits,VGA, HDMI, DVI, WV(178/178),WT(-20~70C), AC-IN w/Built-in PWR NVIS compatible (night vision imaging system)

Chassis, 23.8" - 1920x1080, LED-700 nits,VGA, HDMI, DVI, WV(178/178),WT(-20~70C), AC-IN w/Built-in PWR NVIS compatible (night vision imaging system)

Inquiry/Quote Request
ECHW2380WT-NV
  • Overview
  • Specifications
  • Download

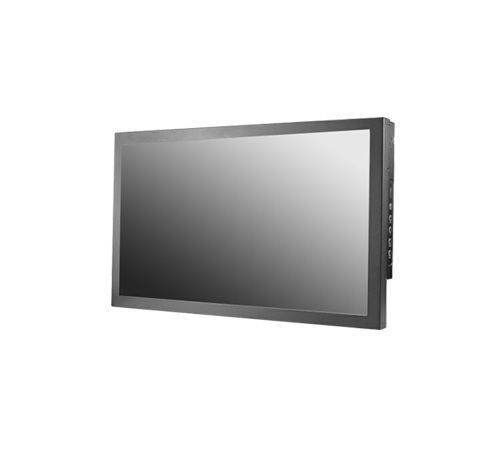

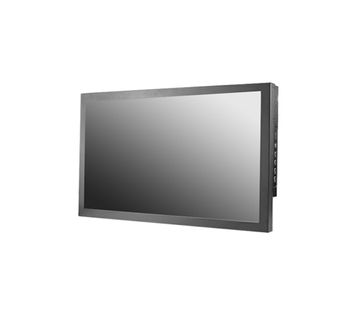

The iTech ECHW2380WT-NV is a 24-inch chassis LCD monitor designed for industrial and professional applications that demand durability, clarity, and performance. Engineered with a robust metal enclosure, this display ensures reliable operation in challenging environments. Its high-quality panel delivers sharp images and consistent color accuracy, making it ideal for control rooms, automation systems, and embedded display solutions. With versatile input options and flexible mounting support, the ECHW2380WT-NV offers seamless integration into various setups.


Features:
  • Enhanced by a modular mechanical design, offers adaptable configuration options and simplified maintenance procedures.
  • Optional built-in touchscreen for interactive applications
  • Equipped with an auto-brightness sensor, making it suitable for both day and night usage scenarios.
  • MIL-STD-810H Category 4 (shock and vibration)
  • Minimum brightness 2cd/m2 or less
  • Support NVIS
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio Wide
Size 23.8" viewable diagonal area
Active Area 527.04(H) x 296.46(V) mm
Pixel Pitch 0.2745(H) x 0.2745(V) mm
Native Resolution 1920(H) x 1080(V)
Colors 16.7M
Brightness 700
Contrast 3000 : 1
Response Time ≤ 16 ms
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, HDMI, DVI, 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
AC-IN w/ Built-in PWR
POWER CONSUMPTION
Operation / Power Saving 13.4 watt , < 1 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -25°C ~ 55°C (-1°F ~ 131°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -30°C ~ 60°C (-22°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. TBD/TBD
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

TOUCH VIDEO INPUT ENHANCED PANEL POWER OTHERS
Resistive Touch AV-IN High Brightness Panel 24V DC-IN Motion Sensor
Projected Capacitive Touch AV Looping Sunlight Readable 9~36V DC-IN Light Sensor
Infrared Touch HDMI / DP Wide Viewing Angle 48V 72V DC-IN VR-knob Dimming
Protected Glass HD-SDI Wide Temperature 90V 125V DC-IN RS232 Remote On/Off
Optical Bonding   UV Film 110V 220V DC-IN Military Connector: MIL 38999
    Anti-Vandal   Metal Connector: M12 / M16
        Stainless 316 Enclosure
