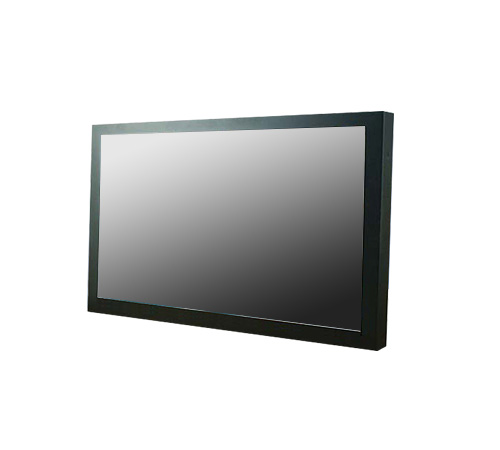

23.8" True Flat Design LCD Monitor w/ VGA, DP, HDMI, PCAP Touch w/ USB controller, VESA Mount (Model: YCHW2380HD-PCAP)
23.8" Touch LCD Monitor / True Flat design / Front IP65 / 1920x1080 300nits / 14ms / VGA+DP+HDMI signal input / PCAP Touch with USB controller / 0 to 50C / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Welcome to the forefront of industrial display technology with our cutting-edge 23-inch True Flat Design LCD Monitor, the YCHW2380HD-PCAP. Designed to meet the demands of diverse industrial applications, this monitor stands as a pinnacle of innovation, marrying exceptional performance with seamless functionality. |
| Featuring a true flat design, this monitor boasts a sleek and modern appearance while minimizing dust accumulation and simplifying cleaning - a critical consideration for environments where cleanliness is paramount. Equipped with capacitive touchscreen technology, it offers intuitive interaction, empowering users to navigate interfaces with ease and precision. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 23.8-inch TFT LCD |
| Screen Diagonal | 23.8-inch |
| Active Display Area (mm) | 527.04 (H) x 296.46 (V) |
| Number of Pixels | 1920 x R.G.B x 1080 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M colors (RGB 6-bit data + HiFRC data) |
| Brightness (cd/m) | 300 cd/m (Without Touch Screen) |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | VGA, DP, HDMI |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | 0 ~ +50°C |
| Plug & Play | VESA DDC 1/2B |
| Touch Type | PCAP Touch with USB Controller |
| Transparency | > 85% (typ.) |
| Hardness of surface | 7H |
| Linearity | ±1.5%(max.) |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
