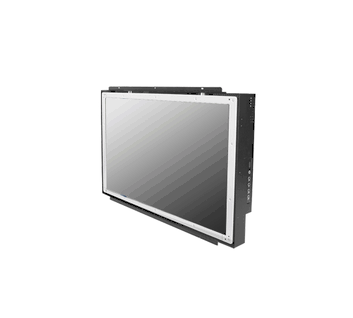

Open Frame 4:3 23.1" LCD Monitor VGA, AC-IN w/Built-in PWR, 12" Long Extended IR Remote Sensor Controller. (Model: EOP2310-NV01)

Open Frame, 4:3, 23.1" LCD monitor, 1600x1200, LED-400nits, VGA, input, AC-IN w/Built-in PWR **Adding 12" long extended IR remote sensor and IR remote controller. (flying cable coming out from the back I/O/) SHARP Panel LQ231U1LW31

Open Frame, 4:3, 23.1" LCD monitor, 1600x1200, LED-400nits, VGA, input, AC-IN w/Built-in PWR **Adding 12" long extended IR remote sensor and IR remote controller. (flying cable coming out from the back I/O/) SHARP Panel LQ231U1LW31

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • VGA connector with optional AV,SV,AV-Looping
    • Available with auto-brightness sensor offers application in day and night
    • Optional build-in touch screen for interactive application
    • Complete custom design/solution for OEM customers
    • Auto Power On: Monitor is always "ON" when connect to power.
    • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.
EOP2310-NV01
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3/23.1" viewable diagonal area
Active Area / Pixel Pitch 470.4(H) x 352.8(V) mm / 0.294(H) x 0.294(V) mm
Native Resolution / Colors 1600(H) x 1200(V)/16.7M
Brightness / Contrast 400 cd/m2 (typ) / 600 : 1
Response Time < 8ms (G-to-G)
Viewing Angle (typical) H. 160° (- 80° ~ + 80°) , V 160°(- 80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System N/A
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power Internal power supply with universal /Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption Operation / Power Saving 117.5 watt, < 5 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ MOT) , 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD = TBD
Weight N.W./G.W. 12Kgs/13.5Kgs
Container Loaded 20ft/40ft/40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
