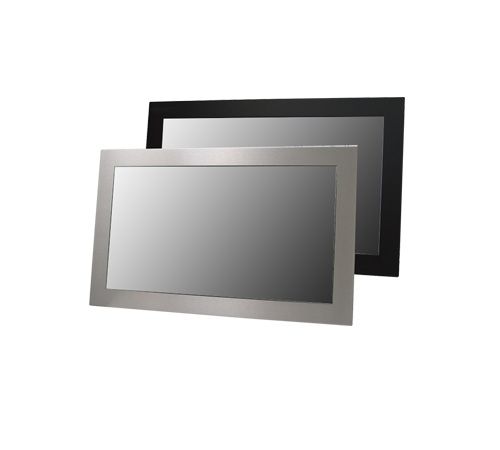

23.8" HD 1080p Panel Mount Industrial Monitor 350nits DVI-I, DisplayPort NEMA 4X, C1D2, UL Certified (Model: HPM2380-TR-DC)

23.8" Panel Mount Industrial Monitor, HazLoc Rated HD 1080p (1920x1080 @60Hz), 350nits DVI-I, DisplayPort NEMA 4X, IP65/IP66/IP69/IP69K, Edge-to-Edge Window, non-touch screen Glass Window, DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS

23.8" Panel Mount Industrial Monitor, HazLoc Rated HD 1080p (1920x1080 @60Hz), 350nits DVI-I, DisplayPort NEMA 4X, IP65/IP66/IP69/IP69K, Edge-to-Edge Window, non-touch screen Glass Window, DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS

Inquiry/Quote Request
HPM2380-TR-DC
  • Overview
  • Specifications
  • Download
Designed for the most demanding industrial settings, the HPM2380 TR-DC is a 23-inch panel-mount monitor tailor-made for hazardous environments. Boasting full HD resolution (1920x1080), it features a resilient panel-mount design with a tempered-glass window and is UL listed for Class I, II, III Division 2 hazardous locations (Groups A, B, C, D, F, G)


Features:
  • Available in NEMA 4/12 or NEMA 4/4X/12 enclosures, sealed to IP65/IP66 standards
  • UL Certified for hazardous locations: Class I, II, III, Division 2
  • High-brightness, high-contrast displays with ultra-wide viewing angles
  • Proven reliability with an MTBF exceeding 250,000 hours
  • Multiple front options: Touch Screen, Glass, Acrylic, or Food-Safe Protection Window
  • Slim depth design: only 46 mm to 54 mm (1.81" to 2.12")
  • Choice of stainless steel, carbon steel, or edge-to-edge bezels
  • Easy panel mounting-no stud hole drilling required
  • Certified to UL 508A, UL 50E, FCC Class A, CE, UL/EN/IEC62368-1, and listed as a UL Recognized Component


Optional Accessories:
  • Industrial Keyboards (IP65/66, NEMA 4X rated)
  • Screen Protectors
  • Extended cable options up to 300 m (1000')
  • KVM Extenders
Display
Type Thin-film transistor (TFT) Active Matrix Liquid Crystal, LED Backlit
Size 23.8" diagonal
Image Size (W x H) 527 mm x 296 mm (20.75" x 11.67")
Native Resolution* HD 1080p (1920 x 1080 @ 60Hz)
Aspect Ratio 16:9
Pixel Pitch 0.2745 mm x 0.2745 mm
Number of Colors 16.7 million
Brightness (white) 350 nits (cd/m2)
Viewing Angle (Hori/Vert) 178° / 178°
Contrast Ratio 1000:1
Backlight Brightness half-life 40,000 hours

Video
Input Connectors DVI-I, DisplayPort
Inputs using Adapter** HDMI, HDMI Mini, HDMI Micro, DisplayPort Mini, VGA, BNC
Input Signal Formats*** RGB: Sep., Comp., SoG; DVI; DisplayPort
Horizontal / Vertical Scan 31-80 kHz / 50-75 Hz
Response Rate 13 ms
Environmental
Operating Temperature* 0° to 50°C (32° to 122°F)
Storage Temperature -20° to 60°C (-4° to 140°F)
Humidity 20% to 90% non-condensing
Operating Shock 15 g, 6 msec, half-sine
Operating Vibration (sine) 1.0 g, swept sine 9-500 Hz
Transport Vibration (random) 0.1g2 Hz, 10-200 Hz; 0.03g2 / Hz, 200-2000 Hz
Altitude Operating: up to 10,000 ft; Non-operating: up to 40,000 ft
Functional
Control Panel Buttons Power On/Off button, Control Function buttons
On-Screen Display Menus Picture, Color, Image, OSD, Setup, Information (other options depending on model)
Physical
Enclosure Type Panel mount; rear collar compresses gasket against panel (5/16" maximum panel thickness); held by M5 studs within single cutout
Bezel Material Edge-to-edge window or stainless steel faceplate
Panel Rating (with proper installation) Edge-to-edge window: NEMA/UL Type 12/4/4X; IP65/66/69/69K Stainless steel: NEMA/UL Type 12/4/4X; IP65/IP66
Depth behind Front Edge of Panel Edge-to-edge: 46.1 mm (1.81") Stainless: 47.9 mm (1.88")
Front Bezel Outside Dimensions (WxHxD) Edge-to-edge: 597 mm x 377 mm x 9 mm (23.5" x 14.83" x 0.35") Stainless: 595.5 mm x 373 mm x 9.8 mm (23.44" x 14.69" x 0.39")
Cutout Dimensions (WxH) 566.7 mm x 342.4 mm (22.31" x 13.48")
Net / Shipping Weight 17 lbs. / 30 lbs.
Window Options Multi-Touch PCAP Touch Screen, Glass window (non-touch), or Food Protection window (non-touch)
Compliances and Certifications
Electrical UL/EN/IEC62368-1, UL/EN/IEC60950-1, UL Recognized Component for US and Canada, UL 508A, CAN ICES-3A/NMB-3A, CE, UKCA, FCC Class A, NOM

Enclosure, Environmental

 UL 50E, IEC 60721-3 (Reliability), WEEE

Hazardous Location

 UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; Temp Code T5
