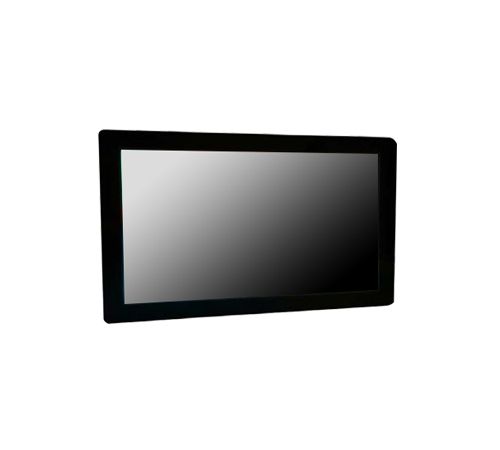

23.8" High Brightness 1600nits LCD w/ Hi-Tni LCD, PCAP Touch, IP66 Chassis w/ DP/HDMI/VGA (Model: GCHW2380P-T)
23.8" FHD (1920x1080) High Brightness (1600nits) LCD with HiTni LCD, PCAP Touch (Water-Resistant), IP66 Chassis, wide 178° Viewing, DP/HDMI/VGA Inputs, RS232 OSD Control, and Auto Brightness/Temperature Control, Power:100~240 VAC-in, Accessories: HDMI Cable x1, USB Cablex1, AC Power Cablex1, Light Sensor Cablex1
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The GCHW2380P-T is a robust 23-inch IP66-rated chassis LCD monitor designed to perform flawlessly in industrial, outdoor, and harsh environments. With an ultra-bright 1600 nits display and projected capacitive (PCAP) touch technology, it offers crystal-clear visibility and responsive multi-touch functionality even under direct sunlight or challenging weather conditions. Housed in a rugged enclosure with full dust and water protection, this monitor is ideal for demanding applications such as outdoor kiosks, automation systems, transportation hubs, and factory floor operations. Count on iTech for durable, high-performance display solutions. |
Features: |
|
| FUNCTION | ITEMS | DESCRIPTION | REMARK | |
| Display | Display area (mm) | 528.60 (H) x 298.00 (V) | 23.8" diagonal | |
| Brightness (nits) | 1600 | TFT surface | ||
| Optimum resolution | 1920 x 1080 | |||
| Contrast Ratio | 1000: 1 | |||
| View angle | 178 / 178 degree | |||
| Backlight Life | 50,000 hours | |||
| Touch Panel / Glass | Type | PCAP | ||
| Total thickness | 3mm | |||
| Support OS | N/A | |||
| Video & audio | Video input | VGA / HDMI / DP | ||
| Audio | Jack-in | Yes | ||
| Built-in speaker | (Option) | |||
| Control | OSD | 5 keys | By removable extension cable | |
| RS232 | (Option) | |||
| Auto brightness | Yes, by external sensor cable | (Option) Waterproof sensor housing | ||
| Power | Power Input voltage | 100~240 VAC | ||
| Consumption(W) | 60 (est.) | |||
| Mechanical | Outline (mm) | 575.0 x 344.0 x 54 (TBD) | ||
| Mounting | 100 x100 (mm) VESA | |||
| Weight | (TBD) | |||
| Environment | Operating temp. | -10~45 °C | TFT Surface up to 800C | |
| Storage temperature | -20~60 °C | |||
| Special items | N/A | |||
| Certification | CE / FCC | |||
