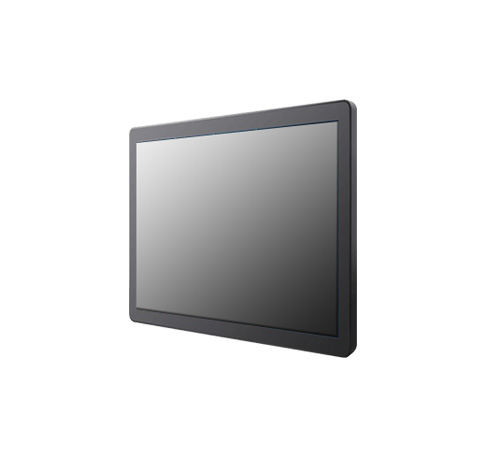

21.5" Wide Rugged Front IP65 LCD 250nits, 1xVGA Input, 12V Input w/ PCAP Touch (Model: WRDW2200-TFP)
Front IP65 Wide 21.5" Rugged Dust/Water Resistant Protection 1920x1080, 250nits Projected Capacitive Multi Touch Screen Operating Temperature: 0~50C, Shock MIL-STD-810G Method 516.6 Vibration MIL-STD-810G Method 514.6,1 x VGA, 12V input with 100~240V AC to DC Adapter Power Cord, 1 x USB for Touch Screen
Main Feature
- 21.5" 1920 x 1080 Resolution
- VGA input and HDMI input
- Projected Capacitive MultiTouch
- Front IP65 for protection against water and dust
X
Inquiry/Quote Request
- Specifications
- Download
| Display | |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Size | 21.5 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250 nits |
| Display Color | 16.7M Colors |
| View Angles | 89,89,89,89 |
| Environment | |
| Operating Humidity | 10% to 90% (NonCondensing) |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | 20°C ~ 60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Mechanical | |
| Dimension | 530.2 x 321.7 x 54.9 mm |
| Enclosure | Plastic Bezel & Metal back cover |
| Mounting | VESA Mount/ Panel Mount |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
| Power | |
| Power Rating | 12V DC Input |
| Control | |
| Button | 5 Keys: , + , Power , Esc , Enter |
