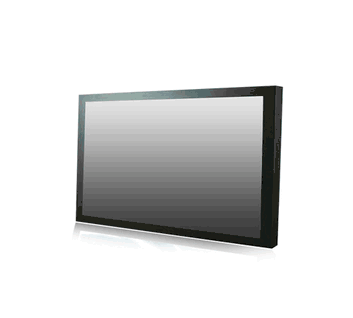

21.5" Industrial Chassis/Surface Mount Metal Housing High Bright LCD 1920x1080, 300nits w/ VGA+DVI Input (Model: YCHW2150E)

21.5" Industrial Chassis/Surface Mount Metal Housing High Brightness LCD 1920x1080 300nits 1000:1 w/ VGA + DVI Input

21.5" Industrial Chassis/Surface Mount Metal Housing High Brightness LCD 1920x1080 300nits 1000:1 w/ VGA + DVI Input

Main Feature

    • Sunlight Readable.
    • 21.5" Full-HD TFT LCD with resolution up to 1920x1080.
    • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
YCHW2150E
  • Specifications
  • Download
  • Contact Sales
Screen Diagonal 21.5
Active Area 476.64 (H) x 268.11 (V)
Pixels H x V 1920(x3) x 1080
Pixel Pitch 0.24825 x 0. 24825
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode VA Mode, Normally Black
Nominal Input Voltage (VDD) +5.0 V
Typical Power Consumption 18.14 W (Cell 3.5W + LED 14.64W) (with LED driver board, all white pattern)
Weight 1,750 (± 175 g)
Physical Size 495.6(W) x 292.2(H) x 11.7(D)
Electrical Interface Dual channel LVDS
Surface Treatment Anti-glare, Hardness 3H
Support Color 16.7M colors (RGB 8 bits)
Temperature Range
Operating 0~60°C
Storage (Non-Operating) -20~60°C
RoHS Compliance RoHS Compliance
Light Bar Unit LED, Non-Replaceable
