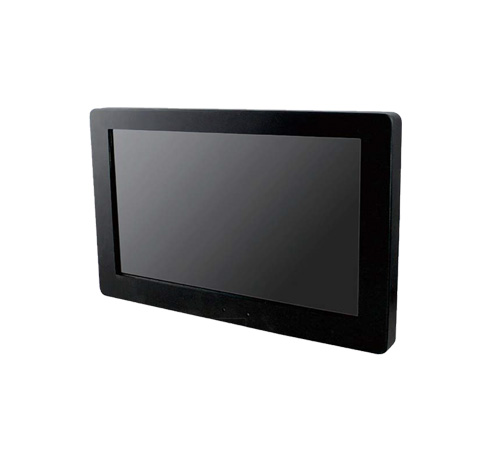

21.5" High Brightness 1200nits 1920x1080p, IR TouchScreen Vandal-proof IK06 glass protection, Front bezel IP65 and Rear IP33-rated chassis, Intel Atom E3845 (Quad-Core@1.91 GHz) (Model: YCPCW2150HB-IR)

21.5" High Brightness 1200nits 1920x1080p, IR TouchScreen Vandal-proof IK06 glass protection, Front bezel IP65 and Rear IP33-rated chassis, Intel Atom E3845 (Quad-Core@1.91 GHz), Low Temperature: -40°C with installed heater, High Temperature: W/ 1120 W/m2 solar energy: 44°C W/ 900 W/m2 solar energy: 50°C (No included OS) (Model: YCPCW2150HB-IR)

21.5" High Brightness 1200nits 1920x1080p, IR TouchScreen Vandal-proof IK06 glass protection, Front bezel IP65 and Rear IP33-rated chassis, Intel Atom E3845 (Quad-Core@1.91 GHz), Low Temperature: -40°C with installed heater, High Temperature: W/ 1120 W/m2 solar energy: 44°C W/ 900 W/m2 solar energy: 50°C (No included OS) (Model: YCPCW2150HB-IR)

Main Feature

    • 21.5" Full-HD TFT LCD with resolution up to 1920x1080.
    • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marine, transportation, gaming, gas pump.
Inquiry/Quote Request
YCPCW2150HB-IR
  • Specifications
  • Download
  • Contact Sales






Display & Touch Screen 		Display Size 21.5" TFT-LCD
Max. Resolution 1920 x 1080
Luminance (cd/m2) Up to 1200nits, set default 75%
Contrast 1000:1
Max. Color 16.7M
View Angle (H°/V°) 140/120
Backlight Lifetime(hrs) 50000
Touch Type IR touch
Touch Interface USB
Light Transmission (%) 88
Point of touch 1





I/O Interface 		USB 3.0 1
USB 2.0 1
RS-232/422/485 1
Selectable in BIOS
RS-232 0
LAN 2x GbE
Additional Graphics DP
Audio None
Digital I/O None
Power Connector AC inlet
Power Button Reset button
Mechanical Dimensions (mm) Net Weight (kgs) 574 x 357 x 82.5 7.5



System 		Processor Intel Atom Processor E3845 (Quad-Core @ 1.91 GHz)
Memory 2x DDR3L SO-DIMM, up to 8GB, default DDR3L 4GB (4GBx1)
Thermal Design Fan
Membrane Control None
Built-in Speaker/MIC None
Internal Expansion Bus 1x Mini PCI-E(x1) w/ USB signal [half-size] 1x mSATA/Mini PCI-E(x1) w/ USB signal and mSATA supported [full-size]
Expansion Expansion Slot None
  Wireless Optional Wi-Fi/BT
Storage HDD 1x 2.5" SATA
Space Removable None
Power Power Input Range 90V ~ 240V AC


Construction 		Chassis Material Aluminum front bezel, black painting Black SGCC + Aluminum chassis
Color (Front/Back) Black/Black
IP Rating IP65 front bezel
Mounting Open frame rack mounting VESA 200x200 and 200x100 mm



Environmental 		Operating Temperature Low Temperature: -40°C with installed heater inside
High Temperature: W/ 1120 W/m2   solar energy: 44 °C
W/ 900 W/m solar energy: 50 °C
Storage Temperature Storage Humidity -20°C~60°C 5%~90% @ 50°C, (non-condensing)
Certification CE/FCC Class B
Supported Operating Systems Windows 8 32-bit/64-bit, Windows 7 Pro for Embedded 64-bit, WES7 64-bit
