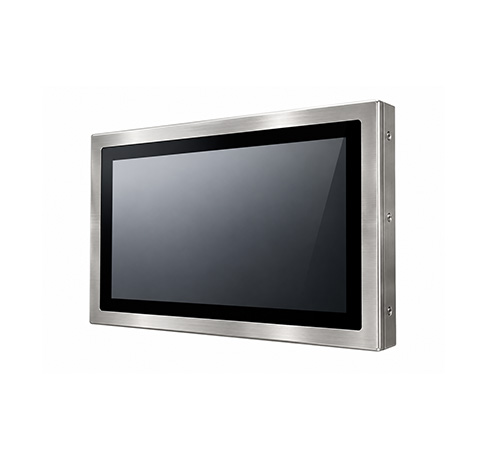

21.5" True Flat Stainless Steel Panel PC, PCAP Touch, Intel Celeron, RAM 4GB / SSD 128GB, Win 11 Pro (Model: VSIP2150JC2)

21.5" True Flat Design Stainless Steel Panel PC with PCAP Touch, MF04V00 / J6412 Intel Celeron, RAM 4GB / SSD 128GB, Win 11 Pro

21.5" True Flat Design Stainless Steel Panel PC with PCAP Touch, MF04V00 / J6412 Intel Celeron, RAM 4GB / SSD 128GB, Win 11 Pro

Inquiry/Quote Request
21inch-full-ip66-stainless-steel-panel-pc-touch-vsip2150jc21
  • Overview
  • Specifications
  • Download
The VSIP2150JC2 is a 21.5-inch industrial stainless steel Panel PC designed for demanding environments where reliable computing, touchscreen operation, and protection against dust and water are essential. It features a true flat PCAP touchscreen and a durable SUS304 stainless steel enclosure with full IP66 protection, making it suitable for industrial automation, food processing, manufacturing, and other washdown or moisture-prone applications.

Powered by an Intel Celeron J6412 quad-core processor, the system comes configured with 4GB RAM, 128GB SSD storage, and Windows 11 Pro for dependable industrial computing performance. Its fanless design helps reduce moving parts and maintenance requirements while supporting quiet operation.

The 21.5-inch Full HD display provides 1920 x 1080 resolution, 250-nit brightness, and a 5000:1 typical contrast ratio. The system also provides HDMI, RS232, USB, LAN, and 24VDC power connectivity through waterproof connectors, with VESA mounting support for flexible installation.


Features:
  • 21.5" industrial panel / 1920 x 1080 / 250nits
  • Operation Temp. : 0C to 50C
  • SUS 304 enclosures with Full IP66 / VESA mount
  • P-CAP Touch with True Flat design
  • Fanless design
  • MF04V00 / J6412 ( 1.5M Cache, up to 2.60GHz Intel Celeron Quad-Core Processor ) / RAM 4GB / SSD 128GB
  • I/O ( all connectors are plastic waterproof connectors / 6ft long ) : HDMI x1, RS232 x1, USB x1, LAN x1 and 24VDC power input ( Connectors to face the back of the unit)
  • Win 11 Pro 64bit installation
Display Viewing Size Image 21.5"
Active Display Area (mm) 477.64 (H) x 269.11 (V)
Pixel Pitch (mm) 0.248 x 0.248
Resolution 1920 x 1080
Contrast Ratio 5000 : 1 (typ.)
Color 16.7M (8bits/colors)
Brightness 250 cd/㎡
Viewing Angle -89~89 (H) ; -89~89 (V)
Recommended Resolution 1920 x 1080 @ 60Hz
Power Source 24VDC power input ( Connectors to face the back of the unit)
Consumption 38W typical, normal operation
Management VESA DPMS Compliant


Motherboard SPECS:
  • Intel Elkhart Lake SoC Processor
  • 2* DDR4 3200MHz Dual Channel SO-DIMM up to 32GB
  • 2* Intel i225V 2.5GbE
  • 2* HDMI2.0b, 1* eDP (co-layout LVDS)
  • 2* COM, 3* USB3.1 (Gen.2), 5* USB2.0
  • 1* M.2 E-key 2230, 1* M.2 B-key 3042 W/SIM card slot
  • 1* M.2 M-key 2242/2280, 1* SATAIII (6Gb/s); 64GB eMMC (default)
  • Support 12~24V DC-in

Processor System Intel Elkhart Lake J6412 SoC Processor (TDP10W)
AMI Flash ROM BIOS
Memory 2* SO-DIMM DDR4 3200MHz Dual Channel SDRAM up to 32GB
Ethernet 2* Intel® i225V 2.5GbE
Storage 1* SATAIII
64GB onboard eMMC (MF04V04 & MF04V08)
1* M.2 M-key (2242/2280) PCIe Gen.3 x2/SATA interface Support NVME
Rear I/O 3* USB3.1 (Gen.2), 3* USB2.0
2* HDMI
2* RJ45
Line-out/MIC combo jack
DC-in (12~24V)
Watchdog Timer From Super I/O to drag RESETCON#
256 segments (10sec ~ 255min)
Form Factor 3.5” (5.8-in * 4.0-in, 148 * 102mm)
Expansion Slot 1* M.2 B-key (3042) Support USB3.1/USB2.0 interface W/SIM card slot
1* M.2 E-key (2230) Support USB2.0/PCIe Gen.3 x1 interface
Graphics Intel® HD Graphics, shared memory
1* eDP (Max Resolution: 4096x2160@60Hz)
1* LVDS (Max Resolution: 1920x1080@60Hz)
2* HDMI2.0b (Max Resolution: 4096x2160@60Hz)
Audio 2 channel HD audio: Realtek ALC888S
Integrated Storage N/A
Internal Connector 2* USB2.0
1* eDP (co-layout LVDS)
1* LVDS w/ Inverter
1* RS232, 1* RS232/422/485
1* SATAIII
1* SIM card slot (along with M.2 B-key)
1* GPIO (8 bit)
1* Audio Header
1* SMBUS
1* CPU FAN
1* TPM2.0 onboard (MF04V02 & MF04V07)
Power DC-IN 12~24V
AT/ATX Supported
- AT: Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Temperature
Operating 0°C ~ 60°C
Storage -20°C ~ 85°C
Humidity 10% ~ 90% RH @40°C (non-condensing)
Compliance CE, FCC, LVD, RoHS, REACH
OS Support UEFI Win10 64-bit, Win 10 IoT Enterprise 64-bit LTSC 2019, CentOS (Version 9), Debian (Version 11.3), Fedora-LXDE (Version 36-1.5), Fedora Workstation (Version36-1.5), Fedora Server (Version 36-1.5), Open SUSE (Version  15.4), Ubuntu Standard / LTS (Version 22.04), Ubuntu Server (Version 22.04), pfSense (Version 2.6.0), TrueNAS (FreeNAS) (Version 13.0), RedHat Enterprise (Version 9.0), OPNSense (Version 22.1.2)
