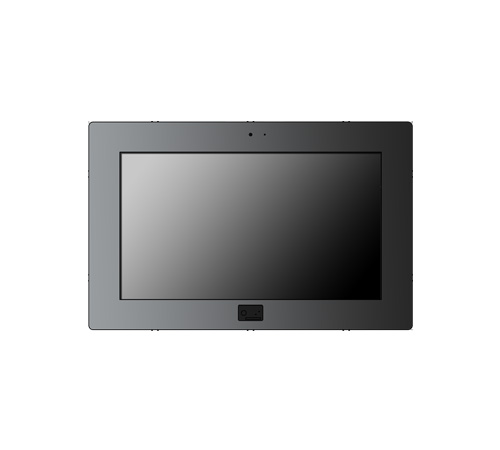

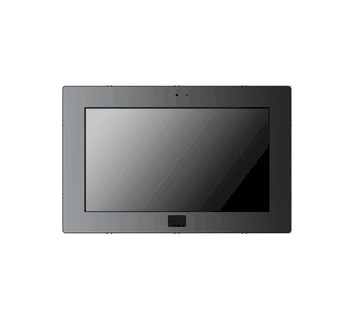

21.5" Flush-Mount (3mm) Fanless Panel-PC PCAP Touch w/ i3-8100, 100~240VAC, Win 10 Pro 64bit (Model: CFMW2150-i3-HT-PCAP)
21.5" industrial panel / 1920 x 1080 / 250 nits, Panel Mount ( with 3mm thickness front bezel ) / clamp mount / P-CAP Touch / Fanless design, JNC8H-H310 / i3-8100 ( 6M Cache, up to 3.60GHz, 8th Generation Intel Core i3 Processors ) / RAM 4GB / SSD 128GB
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
Features: |
|
| Panel | Aspect Ratio / Size | Wide / 21.5" viewable diagonal area |
| Active Area / Pixel Pitch | 478.6(H) x 270(V) mm / 0.248(H) x 0.248(V) mm | |
| Native Resolution / Colors | 1920(H) x 1080(V) / 16.7M | |
| Brightness / Contrast | 250 cd/m2 (typ) / 1000 : 1 | |
| Response Time | < 5 ms | |
| Viewing Angle (typical) | H.170° (- 85° ~ + 85°) , V. 160° (- 80° ~ + 80°) | |
| Touch | P-CAP Touch | |
| Power | Power Input | 100~240VAC |
| Dimensions | Physical | Please refer to Drawing |
| Carton | W x H x D = TBD |
Motherboard Specs:
| Form Factor | |
| Dimensions | - Thin Mini ITX ( 170 * 170mm) |
| Processor System | |
| CPU | - Intel LGA1151 Series Processor (Max. 65W) |
| Core Number | - by CPU |
| Max Speed | - by CPU |
| L2 Cache | - by CPU |
| Chipset | -H310 |
| BIOS | -AMI 128M Flash ROM |
| Expansion Slot | |
| M.2 | -1 (E key 2230,Support CNVi) -1 (M Key 2242) |
| SATA | -1 |
| PCI-e | -1 * PCI-E x4 slot |
| Memory | |
| Technology | - Single channel DDR4 2133MHz DRAM |
| Max. | -64GB |
| Socket | -2*SO-DIMM |
| Graphics | |
| Controller | - Intel HD Graphics |
| VRAM | - Shared Memory |
| VGA | -1 (Max. Resolution: 1920xl200@60Hz) |
| LVDS | -1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz) |
| eDP1.3 | -1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz) |
| HDMI 1.4 | -1 (Max Resolution : 4096x2160@30Hz) |
| Multi Display | - Dual Display |
| Ethernet | |
| Ethernet | -10/100/1000 Mbps |
| Controller | - Intel 1219-V + i211AT Gigabit LAN |
| Connector | - 2* RJ 45 |
| Audio | |
| CODEC | - HD Audio : Realtek ALC662VD |
| Channel | - Line-Out, MIC |
| SATA | |
| Max Data Transfer Rate | -1* SATAN III (6.0Gb/s) |
| Rear I/O | |
| VGA | -1 |
| HDMI | -1 |
| Ethernet | -2 |
| USB | -4* USB 3.0 |
| Audio | -1 (Line-out, MIC) |
| DC-input | -1 |
| Internal Connector | |
| USB | -5 (USB 2.0) |
| PS/2 | -1 |
| LVDS / inverter | -1 (Co-lay eDP) |
| eDP | -1 |
| Serial | - 4 (COM1/2 Support 5V/12V TTL) |
| SATA | -1* SATAN III (6.0Gb/s) |
| M.2 | - 2 (M key + E key) |
| GPIO | -1 (8 bit) |
| Chassis intrusion | -1 |
| Audio Header | -1 |
| SMBUS/I2C | -1 |
| AT mode | -1 |
| Watchdog Timer | |
| Output | - From Super I/O to drag RESETCON# |
| Interval | - 256 segments (lOsec ~ 255min) |
| Power Requirements | |
| Input PWR | -12 ~ 24V DC-in |
| Power On | AT/ATX Supported - AT : Directly PWR on as Power input ready - ATX: Press Button to PWR on after Power input ready |
| Certifications | |
| Certifications | - CE, FCC, RoHS, REACH |
| Environment | |
| Temperature | - Operating: 0°C~60°C |
| - Storage: -20°C~85°C | |
| Warranty | |
| Warranty | - 2 Years Limited Warranty |
| Packing | |
| Packing | - Net Weight: - Gross Weight: - Color Box dimension: 362*290.5*65mm |
