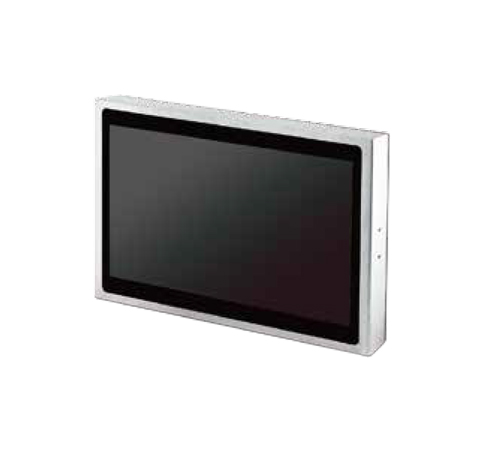

21.5" Fanless Fully IP65 Stainless Steel Panel PC w/ i5 7300U, 2xUSB, 2xRS232, 2xGLAN, PCAP Touch (Model: KSPW2150-i5-FPCAP-F01)

Fanless 21.5" Fully IP65 stainless steel panel PC with True Flat PCAP Touchscreen, i5 7300U, 2x USB, 2x RS232, 2x GLAN, 1x 124V DC in PW All M12 waterproof connectors with cables, External Heatsink, VESA 100x100 & Yoke mount, Res: 1920x1080 Dpi

Fanless 21.5" Fully IP65 stainless steel panel PC with True Flat PCAP Touchscreen, i5 7300U, 2x USB, 2x RS232, 2x GLAN, 1x 124V DC in PW All M12 waterproof connectors with cables, External Heatsink, VESA 100x100 & Yoke mount, Res: 1920x1080 Dpi

Inquiry/Quote Request
KSPW2150-i5-FPCAP-F01
  • Overview
  • Specifications
  • Download
The 21-inch Fanless IP65 Stainless Steel Panel PC with an Intel i5 processor and capacitive touch screen is built to excel in the most demanding industrial environments. Its IP65-rated stainless steel housing ensures protection against water and dust, making it ideal for use in harsh conditions. With fanless design for quiet operation and an intuitive touch interface, this industrial-grade panel PC provides robust performance, reliability, and long-lasting durability for a wide range of applications.


Features:
  • Fanless and rugged design
  • 4th Gen Intel i5 7300U Processor
  • Resolution 1920 x 1080 dpi
  • True Flat PCT
  • Full 304 IP65 6 sides stainless chassis
  • All IP65 M12 waterproof connectors
  • 2 x USB, 2 x RS232, 2 x GLAN
  • VESA mount & Yoke mount
  • Integrated 8GB DDR III L So-DIMM
  • 2.5" 1TB
  • Window 10 IoT Ent LTSB
  • 2x LAN Ports connectors + Cables
  • 24V built-In then it will come with a open wire + and - connections.


SYSTEM
CPU 7th Gen Intel Core i5 7300U
Memory Integrated 8GB DDR III L So-DIMM
H/W MONITOR
Watchdog Timer  Watch Dog Timer 256 Level
I/O PORTS
RS232 2
GLAN 2
USB 2
STORAGE
Storage 2.5" 1TB
EXPANSION
Mini PCI-E 2 x Full-size
POWER REQUIREMENT
Power Input Voltage 24V built-In then it will come with a open wire + and - connections.
TOUCH SCREEN
Touch screen True Flat PCAP touch
OS Window 10 IoT Ent LTSB
OS support Win Pro 7, 8.1 / Embedded Win 7, 8.1
DISPLAY
Size 21.5" TFT (16:9)
Resolution 1920x1080
Colors 16.7M
Luminance 300 cd/m2
Contrast Ratio 3000:1
View Angle (HA/) 1787178°
MECHANICAL & ENVIRONMENTAL
Heatsink Back side
I/O ports Back side
Operation Temp. 0 ~ 45°C
Storage Humidity 10 ~ 90%, non-condensing
Mount VESA mount (100X100mm) & Yoke mount
Dimension (WxHxD) 607 x 400 x 73 mm
Weight TBD
OPTIONAL
External antenna
Full IP65 Waterproof Power adaptor with European power cord (150W/90 ~ 295V AC input/ 24V DC output)
Full IP65 Waterproof Power adaptor with US power cord (150W/ 90 ~ 295V AC input/ 24V DC output)
Optical Bonding
HDMI port
RFID Reader (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

Optional HB Panel
Resolution 1920x1080
Color 16.7M
Luminance 1000cd/m2
Contrast Ratio 3000:1
Viewing Angle (HA/) 1787178°
