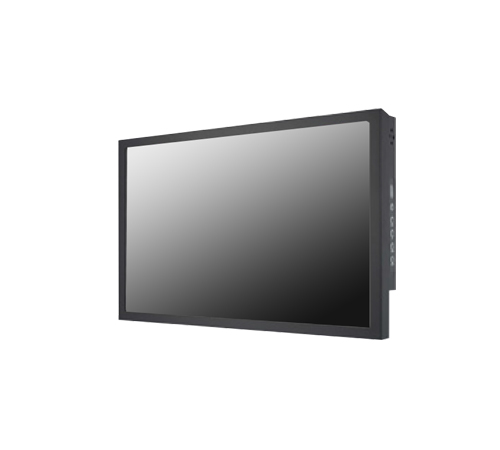

21.5" Chassis LCD display LED-250nits VGA+DVI-D, HDMI Input Build-in PCAP Touch w/ 110/230VAC (Model: EMCMW21500HD-PCT-H)

Chassis LCD display, 21.5"-1920x1080, LED-250nits, VGA+DVI-D,HDMI signal input ports, Build-in PCAP touch USB Controller with USB retainer, Built-in Power Supply with 110/230VAC auto-detected with retainer Bracket

Modularize mechanical design provides flexible product configuration and easy maintenance
Available with auto-brightness sensor offers application in day and night
VGA+DVI-D,HDMI signal input ports
Build-in PCAP touch USB Controller with USB retainer
Built-in Power Supply with 110/230VAC auto-detected with retainer Bracket
VESA holes 75x75mm with anti Vibration Damper x 4
Compliance MIL-STD-810 anti-shock & anti-vibration; MIL-STD-461 for EMI/EMC
Auto Power On: Monitor is always "ON" when connect to power.
Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 21.5" viewable diagonal area
	Active Area / Pixel Pitch	476.64(H) x 268.11(V) mm / 0.248(H) x 0.248(V) mm
	Native Resolution / Colors	1920(H) x1080(V)/16.7M
	Brightness / Contrast	250 cd/m2 (typ) / 1000: 1
	Response Time	< 5 ms
	Viewing Angle (typical)	H.1700 (- 85° ~ + 85°) , V 160°(- 80° ~ + 80°)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp.p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv: 50 -75Hz
	Audio System	2W speaker x 2
Input Terminals	1xVGA, 1xDV-D, 1xHDMI, 1xUSB, 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	Internal power supply with universal /Auto-Sensing, AC90 to 260V, 50/60 Hz
Power Consumption	Operation / Power Saving	26.25 watt, < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	19°C ~ 30°C, 30 ~ 70 % RH
Storage Condition	Temperature / Humidity	-40°C ~ 70°C (- 40°F ~ 158°F), 10% ~ 90% (no condensation)
Certification		FCC,CE
Dimensions	Physical	Please refer to Drawing
	Carton	WxHxD=TBD
Weight	N.W./G.W.	8 Kgs/9 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)
