21.5" LCD Monitor 300nits, w/o Speaker VGA, HDMI, 1*AV-IN + 1*AV-Out Looping or VGA, HDMI, YPbPr (Component) (Model:ECHW2150-SIP-DA8)

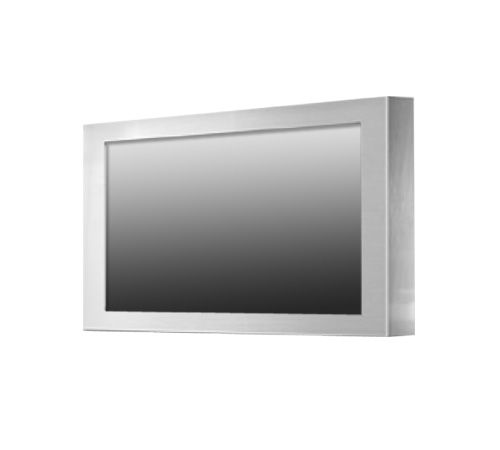

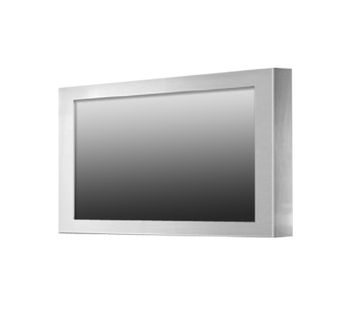

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount, 21.5" LCD monitor, 1920 x 1080, 300 nits, without speaker VGA + HDMI + 1*AV-IN + 1*AV-Out looping or VGA+HDMI+YPbPr(component) (Need to specified) Optional RS232 remote control with Scaling functions
ECHW2150-SIP-DA8
- Overview
- Specifications
- Download
| Cell Type |
TFT LCD |
| Glass Surface |
Black Anti-Glare, low reflection coating |
| Aspect Ratio |
4:3 |
| Size |
21.5" viewable diagonal area |
| Active Area |
476.64(H) x 268.11(V) mm |
| Pixel Pitch |
0.248(H) x 0.248(V) mm |
| Native Resolution |
1920(H) x 1080(V) |
| Colors |
16.7M |
| Brightness |
300 |
| Contrast |
1000 : 1 |
| Response Time |
≤ 5 ms |
| Viewing Angle (typical) |
H. 170°(- 85°~ + 85°) , V. 160°(- 80°~ + 80°) |
| Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
|
| |
| CERTIFICATION |
| FCC , CE |
| INPUT TERMINALS |
| 1 x VGA , 1 x HDMI , 1 x AV , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| CONVENIENT FEATURES |
| Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
| POWER |
| 12VDC-IN |
| POWER CONSUMPTION |
| Operation / Power Saving |
26.25 watt , < 1 watt (Support DPMS) |
| OPERATING CONDITION |
| Temperature / Humidity |
0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| STORAGE CONDITION |
| Temperature / Humidity |
-20°C ~ 60°C (-32°F ~ 122°F) , 10% ~ 90% (no condensation) |
| DIMENSIONS |
| Physical |
|
| Carton |
W x H x D = TBD |
| WEIGHT |
| N.W. / G.W. |
8 Kgs/ 9 Kgs |
| CONTAINER LOADED |
| 20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
| |
| TOUCH |
VIDEO INPUT |
ENHANCED PANEL |
POWER |
OTHERS |
| Resistive Touch |
AV-IN |
High Brightness Panel |
24V DC-IN |
Motion Sensor |
| Projected Capacitive Touch |
AV Looping |
Sunlight Readable |
9~36V DC-IN |
Light Sensor |
| Infrared Touch |
HDMI / DP |
Wide Viewing Angle |
48V 72V DC-IN |
VR-knob Dimming |
| Protected Glass |
HD-SDI |
Wide Temperature |
90V 125V DC-IN |
RS232 Remote On/Off |
| Optical Bonding |
|
UV Film |
110V 220V DC-IN |
Military Connector: MIL 38999 |
| |
|
Anti-Vandal |
|
Metal Connector: M12 / M16 |
| |
|
|
|
Stainless 316 Enclosure |
|
