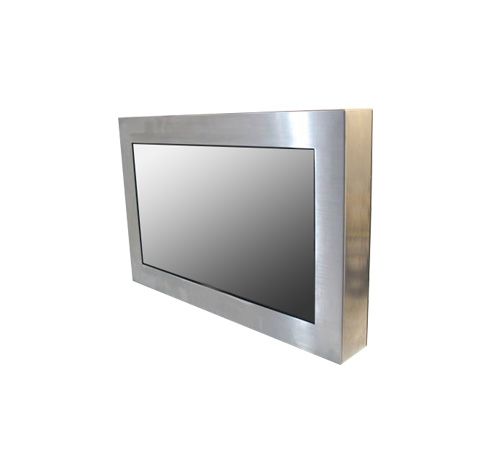

21.5" IP66/NEMA4X Stainless Steel Full IP66, 1920x1080 / 250nits, Resistive Touch, HDMI, 24VDC (Model: CCHW2150-SIP-TR-H16)
Rugged Completely Sealed Full IP66/NEMA4X Stainless Steel Chassis/Surface Mount 21.5" Industrial Panel 1920x1080 / 250nits Stainless Steel 304 with Full IP66 Enclosures, Resistive Touch, I/O (All connectors are waterproof connectors: HDMI and 24VDC Input)
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 21-inch full IP-rated stainless-steel display from iTech is built to perform in harsh industrial and outdoor environments. With an IP66/NEMA 4X-rated front panel, corrosion-resistant stainless-steel housing, and full-sealing against dust, water and spray, this monitor is ideal for marine, food-processing, wash-down, chemical or heavy–duty outdoor applications. Engineered for reliability in rugged conditions, the model features a robust design, capacitive/resistive touch option and broad compatibility for industrial control systems - making it a dependable choice when standard displays won't cut it. |
Features: |
|
| Display | Viewing Size Image | 21.5" |
| Active Display Area (mm) | 479 (H) x 270.50 (V) | |
| Pixel Pitch (mm) | 0.248 x 0.248 | |
| Resolution | 1920 x 1080 | |
| Contrast Ratio | 5000 : 1 (typ.) | |
| Color | 16.7M | |
| Brightness | 250nits | |
| Viewing Angle | -89~89 (H) ; -89~89(V) | |
| Recommended Resolution | 1920 x 1080 @ 60Hz | |
| Signal Connector | HDMI | |
| Power | Source | 24VDC Input |
| Consumption | 38W Typical, Normal Operation | |
| Management | VESA DPMS Compliant | |
| Touch | Touch | Resistive Touch |
