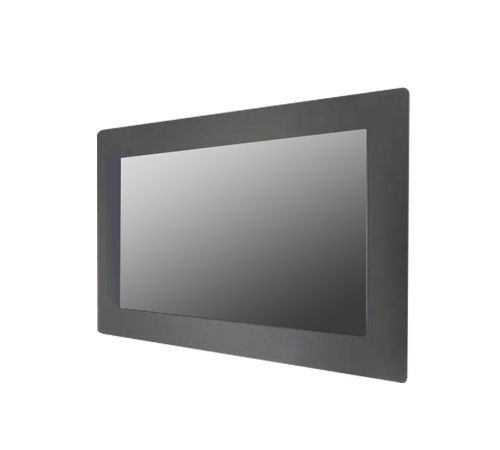

21.5" IP66 Front Panel Mount LCD Monitor VGA+DVI+HDMI, 5-Wires Resistive Touch, Rear OSD (Model: YPMW2150P6-TR)

21.5" LCD Monitor / 5mm metal front bezel / Front IP66 / 1920x1080 / 500nits LED, VGA+DVI+HDMI signal input / 5-Wires Resistive Touch screen with USB controller, 2W Speaker x2 / AC 90~264V Power input / Rear OSD / Panel Mount with Clamp / VESA Mount

21.5" LCD Monitor / 5mm metal front bezel / Front IP66 / 1920x1080 / 500nits LED, VGA+DVI+HDMI signal input / 5-Wires Resistive Touch screen with USB controller, 2W Speaker x2 / AC 90~264V Power input / Rear OSD / Panel Mount with Clamp / VESA Mount

Inquiry/Quote Request
YPMW2150P6-TR
  • Overview
  • Specifications
  • Download
The iTech 21-inch IP66 front panel mount LCD monitor with touch functionality is designed for industrial and outdoor applications requiring durability, high brightness, and reliable performance. Built with a rugged 5mm metal bezel and IP66-rated protection, it ensures resistance against water and dust while delivering crisp 1920x1080 resolution. Ideal for harsh environments, it offers multiple input options, responsive resistive touch control, and flexible mounting solutions.


Features:
  • 21.5" LCD monitor with 1920x1080 resolution
  • Front IP66-rated 5mm metal bezel
  • 500 nits high-brightness LED display
  • VGA, DVI, and HDMI inputs
  • 5-wire resistive touch screen with USB controller
  • Panel mount with clamp / VESA mount compatible
ITEM SPECIFICATION
Panel Type 21.5-inch TFT LCD
Screen Diagonal 21.5-inch
Active Display Area (mm) 476.64 (H) x 268.11(V)
Pixel Pitch (um) 248.25 x 248.25
Number of Pixels 1920 x 1080
Contrast Ratio 1000: 1
Color Arrangement R.G.B. Vertical Stripe
Brightness (cd/m˛) 500 cd/m˛
Viewing Angle(Typ.) 178/178 (H/V)
Signal Connector VGA+DVI+HDMI
Power Source AC 90~264V Power input
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ 50°C
Storage Temperature -20 ~ 60°C
