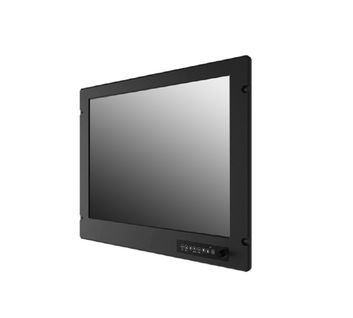

21.3" 1000nits Marine Full IP66 Display w/ VGA+DVI+S-Video, Isolated 9~36V DC, Resistive Touch (Model: WMAR2130HB-TR-DC)

21.3" 1000nits High Brightness Marine Full IP66 (Front Side) Display with 1600x1200, VGA+DVI+S-Video Input, VESA Mount/Panel Mount, Isolated 9~36V DC, Resistive Touch Screen

21.3" 1000nits High Brightness Marine Full IP66 (Front Side) Display with 1600x1200, VGA+DVI+S-Video Input, VESA Mount/Panel Mount, Isolated 9~36V DC, Resistive Touch Screen

Inquiry/Quote Request
WMAR2130HB-TR-DC
  • Overview
  • Specifications
  • Download
The 21-inch High Brightness Marine Full IP66 Display by i-Tech is built to perform in the most demanding marine conditions. Featuring an impressive 1600 nits brightness and transflective technology, this display ensures exceptional visibility even in direct sunlight. Designed with a robust IP66-rated aluminum housing, it withstands harsh weather, shock, and vibration, making it ideal for maritime navigation, control rooms, and outdoor marine applications. The user-friendly front panel OSD and advanced PIP functionality offer convenient control, while multiple video inputs provide versatile connectivity. Perfect for professionals seeking reliability and clarity on the open sea.


Features:
  • Adjustable dimming knob allows backlight brightness control from nearly 0% to 100%.
  • Durable IP66-rated aluminum housing with a protective powder-coated finish.
  • 24V DC isolated power module ensures reliable operation.
  • High-quality touch-screen with optional AR protective glass.
  • User-friendly front panel OSD control for seamless marine display management.
  • Enhanced resistance to shock and vibration for demanding environments.
Display
Resolution 1600x1200 Size 21.3 inches
Contrast Ratio 1800:1 Panel Brightness 1000 nits
View Angles 89,89,89,89 Active Area 432x324 mm
Touch / Glass Resistive Touch Screen Display Color 16.8M Colors
Environment
Operating Humidity 5% to 95% Operating Temperature -15~55°C
Shock 15G,11ms duration Vibration 0.7g@DNVGL CG-0339 (Class A)
IP rating IP66 (Front Side)
Certification
Certification CE, FCC
Mechanical
Dimension 519 x 420 x 81.4 mm Weight 7.5 kg
Mounting VESA Mount/ Panel Mount Enclosure Metal Housing with Aluminum Bezel
Cooling System Fanless Design Cut out 480 x 396mm
IO Ports
Video 1 x VGA
1 x DVI-D
1 x Composite
1 x S-Video 		Serial Port 1 x RS232 for Remote Control
1 x RS232/USB for Touch Screen
Accessory
Accessory 1 x User Manual.
1 x CD for Touch-screen Driver Tools.
1 x DVI Cable.
1 x VGA Cable.
1 x RS232 Serial Cable.
1 x S-Video Cable.
1 x Composite Cable.
Power
Power Rating 9~36V DC Input Acceptable Consumption 50W (Typical)
Control
Button 8 key: Esc/PIP, Auto adjustment, Left, Right/Source, OK/Menu, Up, Down, Power, 1 x The Dimming Knob
