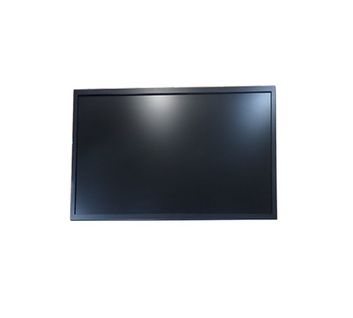

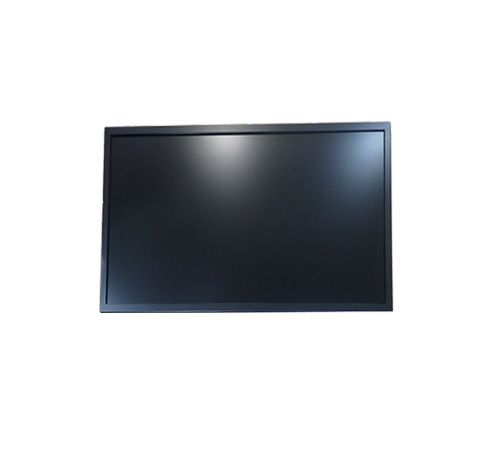

21.5" Metal Chassis Close Frame Monitor 2000nits w/ VGA, DVI, HDMI, RS232, 24VDC-in (Model: GCHW2150HB2V3)
21.5" Close Frame Monitor with 2000nits Brightness, 1920x1080 Resolution, I/O: VGA/DVI/HDMI,RS232, Power: 24V DC-in, Metal Chassis with Rear VESA Mount Design, Built-in Auto Brightness Control
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Explore our robust 21-inch High Brightness Close Frame Monitor, designed to meet the rigorous demands of industrial environments. Offering exceptional clarity and durability, this LCD monitor is ideal for applications requiring reliable performance in challenging conditions. |
Features: |
|
| FUNCTION | ITEMS | DESCRIPTION | REMARK | |
| Display | Display area (mm) | 476.064 (H) x 267.786 (V) | 21.5" diagonal | |
| Brightness (nits) | 2000 | |||
| Optimum resolution | 1920 x 1080 | |||
| Contrast Ratio | 1000: 1 | |||
| View angle | 178 / 178 degree | |||
| Backlight Life | 50,000 hours | |||
| Touch panel | Type | N/A | ||
| Total thickness | N/A | |||
| Support OS | N/A | |||
| Video & audio | Video Input | VGA / HDMI / DVI | ||
| Audio | Jack-in | Yes | ||
| Built-in speaker | (Option) | |||
| Control | OSD | 5 keys | (LED) Power/Menu/Left/Right/Auto | |
| RS232 | Yes / D-sub (9 pin) | |||
| Auto brightness | Yes, External sensor cable | (Option) Waterproof sensor cover | ||
| Power | Power Input voltage | DC 24V | DC jack:Φ5.5mm /ψ2.5mm | |
| Consumption(W) | 58 (typ.) | |||
| Mechanical | Outline (mm) | 502.8 x 297.2 x 49.6 (D) | ||
| Mounting | 100 x100 (mm) VESA | |||
| Weight | (TBD) | |||
| Environment | Operating temp. | -10~50 °C | ||
| Storage temperature | -20~60 °C | |||
| Special items | N/A | |||
| Certification | CE / FCC | |||
