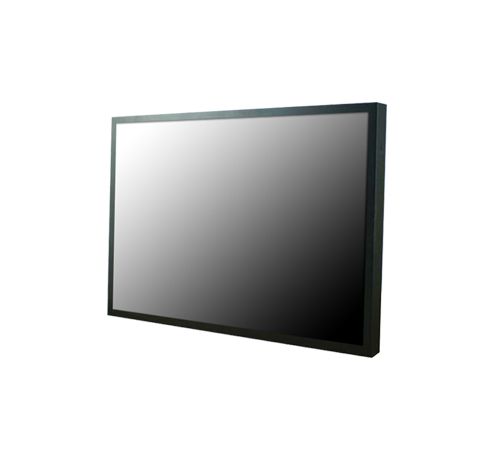

21.3" 4:3 High Brightness Chassis LCD Touch Monitor w/ VGA+DVI+HDMI, Side OSD, Resistive Touch (Model: YCH2130HB-TR)

21.3" Chassis LCD Touch monitor / 4:3 / 1600x1200 / 1000 nits LED / VGA+DVI+HDMI input / Side OSD / 5 Wires Resistive Touch with USB Controller / VESA Mount

21.3" Chassis LCD Touch monitor / 4:3 / 1600x1200 / 1000 nits LED / VGA+DVI+HDMI input / Side OSD / 5 Wires Resistive Touch with USB Controller / VESA Mount

Inquiry/Quote Request
YCH2130HB-TR
  • Overview
  • Specifications
  • Download
The 21-inch High Brightness Chassis LCD Touch Monitor (YCH2130HB-TR) by iTech is a rugged, industrial-grade display designed for demanding environments requiring sunlight readability and reliable touch interaction. Featuring a 1000 nits high-brightness screen, durable chassis mount enclosure, and responsive touch interface, this monitor is ideal for outdoor kiosks, military command centers, factory automation, and marine applications. Built for performance and longevity, the YCH2130HB-TR ensures optimal visibility and seamless operation in both bright and harsh conditions.


Features:
  • High contrast color TFT-LCD Monitor support resolution up to 1600*1200.
  • Power management system conforms to VESA DPMS and EPA Energy Star standards.
  • Universal Power adapter.
  • Support DDC1 & DDC2B for Plug & Play compatibility.
  • Advanced OSD control for picture quality adjustment.
  • Detachable stand for wall-mounting adjustment.
  • Heavy duty monitor with steel frame.
  • 5 Wires Resistive Touch with USB Controller
Item Specification
Panel Type 21.3-inch TFT LCD
Screen Diagonal 21.3-inch
Active Display Area (mm) 432.0 x 324.0
Pixel Pitch (mm) 0.270 (H) × 0.270 (V)
Number of Pixels 1600 (x3) x 1200
Contrast Ratio 1800:1
Display Color 16.7 M Colors ,True 8 Bit (RGB)
Brightness (cd/m) 1000 cd/m
Viewing Angle(Typ.) 89 / 89 / 89 / 89 ( R/L/U/D)
Signal Connector 15 PIN D-Sub,DVI-D,HDMI
Power Source DC 12V
Power Management VESA DPMS Compliant
Operating Temperature 0 ~ +50 °C
Storage Temperature -20 ~ +60°C
Plug & Play VESA DDC 1/2B
Speaker 2 Watts x 2
