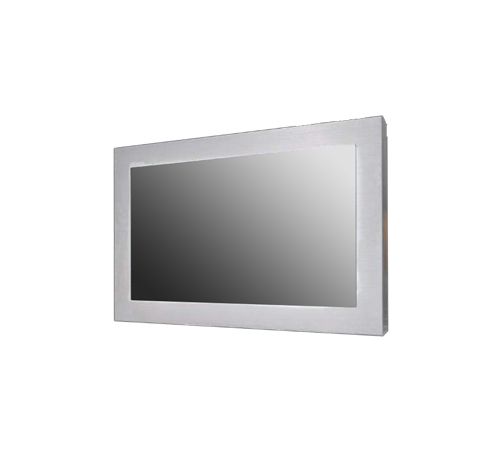

21.3" 1000nits Chassis Mount Full IP67/NEMA4X w/ HDMI, 12VDC external 100-240VAC, AR Glass (Model: ECH7-2130HBC-G)

21.3" High Brightness Rugged Completely Sealed Full IP67/NEMA4X 1600x1200 / 1000nits (Standard) Chassis Design with All Aluminum / Full IP66 / VESA mount, w/ HDMI and 12VDC with external 100-240VAC Power Adapter, AR Glass/Non Touch

21.3" High Brightness Rugged Completely Sealed Full IP67/NEMA4X 1600x1200 / 1000nits (Standard) Chassis Design with All Aluminum / Full IP66 / VESA mount, w/ HDMI and 12VDC with external 100-240VAC Power Adapter, AR Glass/Non Touch

ECH7-2130HBC-G
  • Overview
  • Specifications
  • Download
Discover the rugged power of the ECH7-2130HBC-G - a 21-inch high-brightness chassis touch monitor engineered for the toughest conditions. With full IP67/NEMA4X protection, sunlight-readable display, and industrial-grade touch control, it delivers reliable performance in wet, dusty, or outdoor environments. Whether for marine, industrial automation, or outdoor kiosks, this monitor is built to exceed the demands of harsh use.


Features:

  • 21.3" Industrial Panel / 1600x1200 / 1000nits ( Standard )
  • Chassis Design with All Aluminum / Full IP66 / VESA mount
  • AR Glass/Non Touch
  • All Black Powder Coating
  • I/O ( all connectors are waterproof connectors / 6ft long ): HDMI and 12VDC with external 100-240VAC Power Adapter
Display Viewing Size Image 21.3"
Active Display Area (mm) 232.0 x 324.0
Pixel Pitch (mm) 0.270 (H) x 0.270(V)
Resolution 1600 x 1200
Contrast Ratio 1800 : 1 (typ.)
Color 16.7M
Brightness 1000nits
Viewing Angle -89~89(H) ; -89~89 (V)
 Recommended Resolution 1600 x 1200 @ 60Hz
Signal Connector HDMI

Power Source 12VDC with external 100-240VAC Power Adapter
Consumption 26.2W typical, normal operation
Management VESA DPMS Compliant
